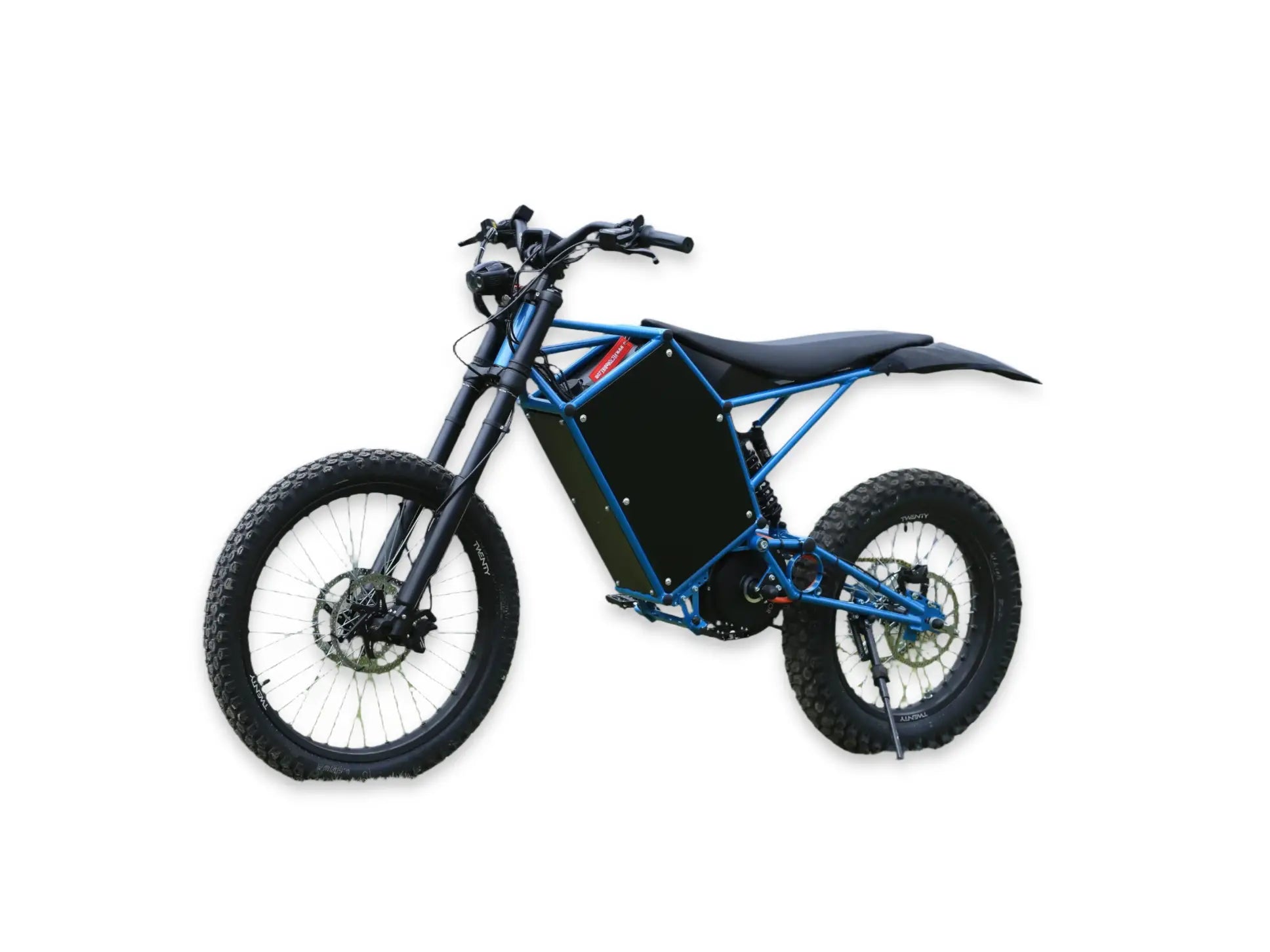

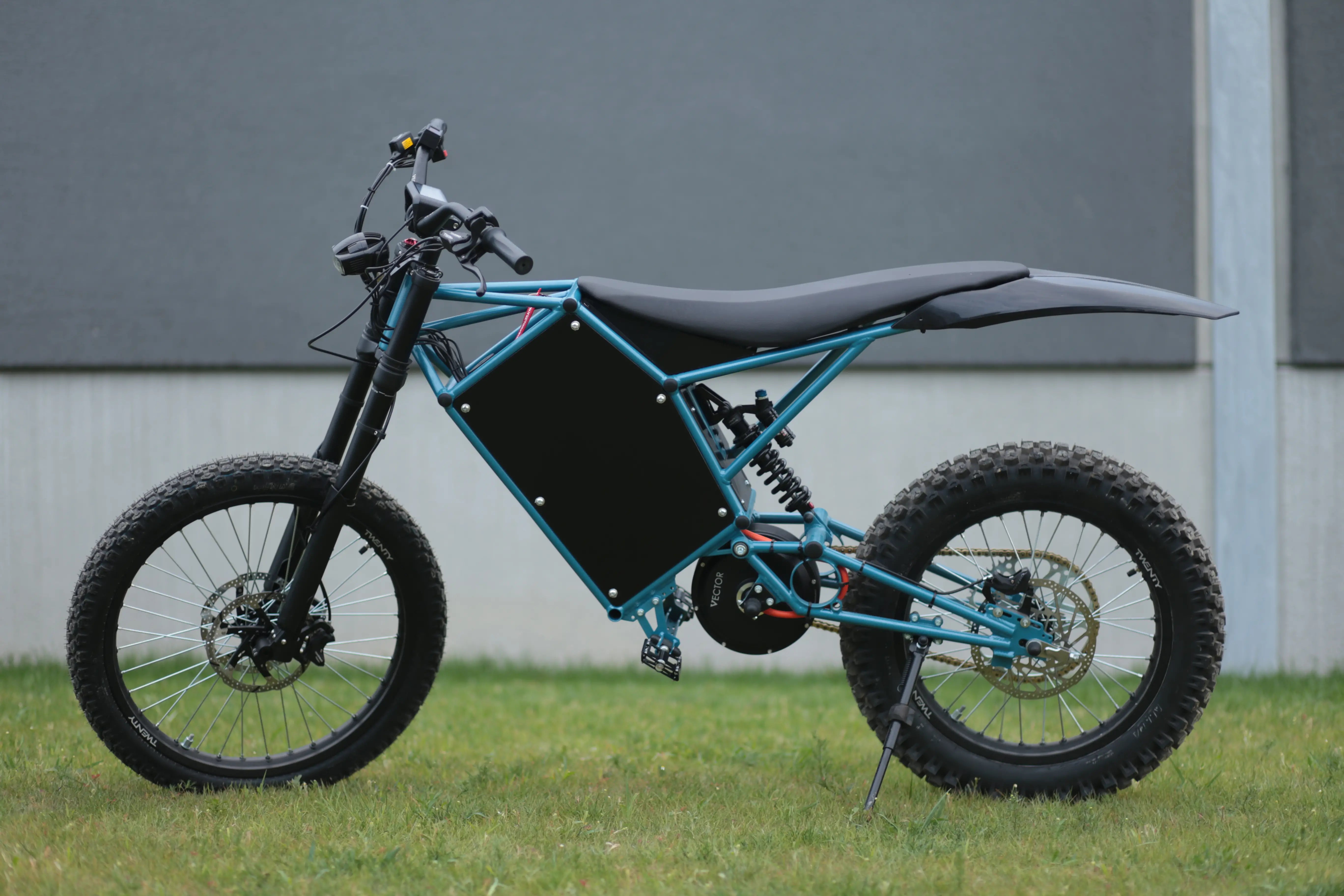

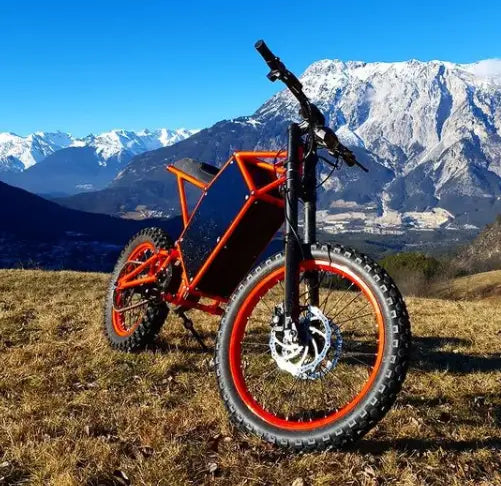

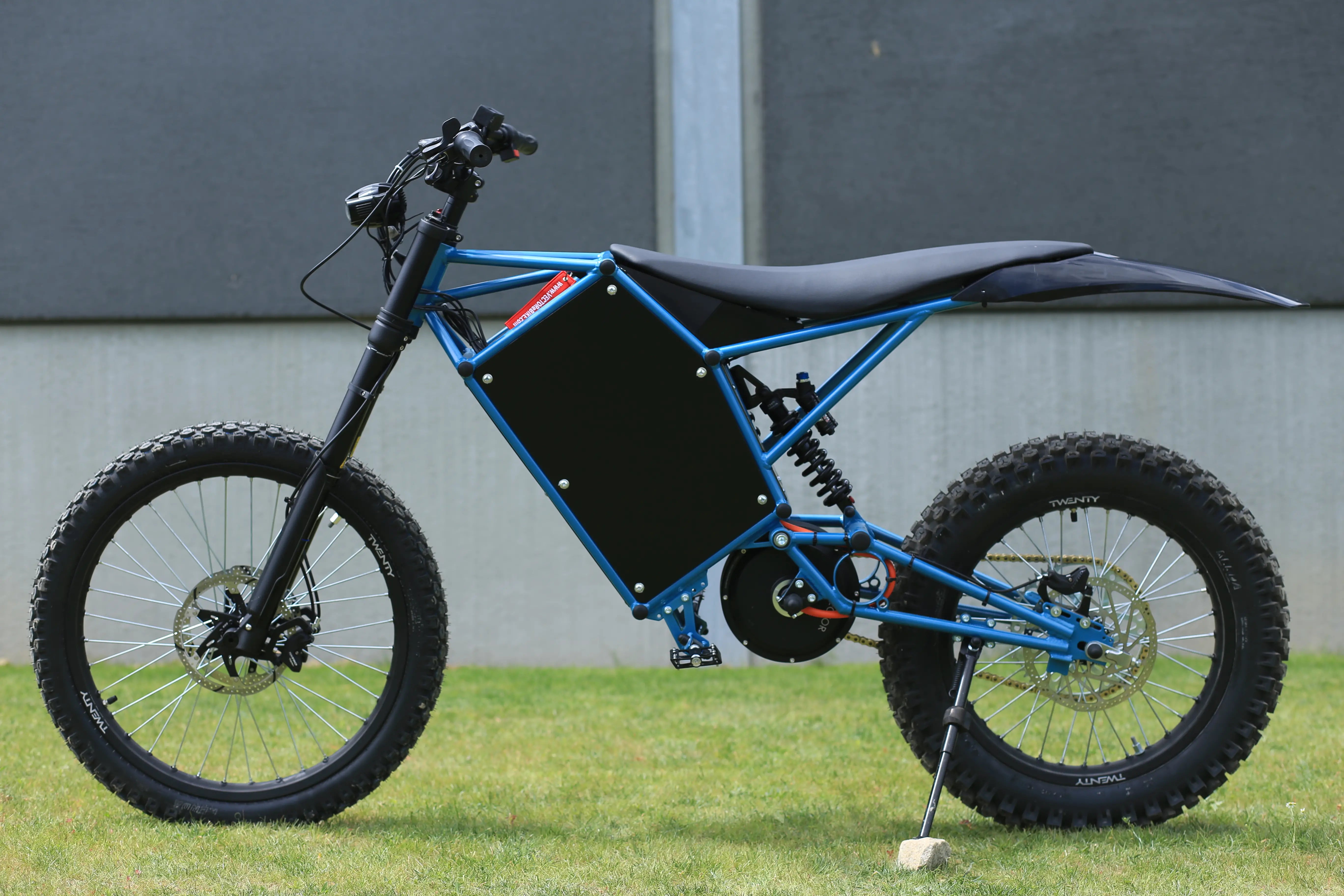

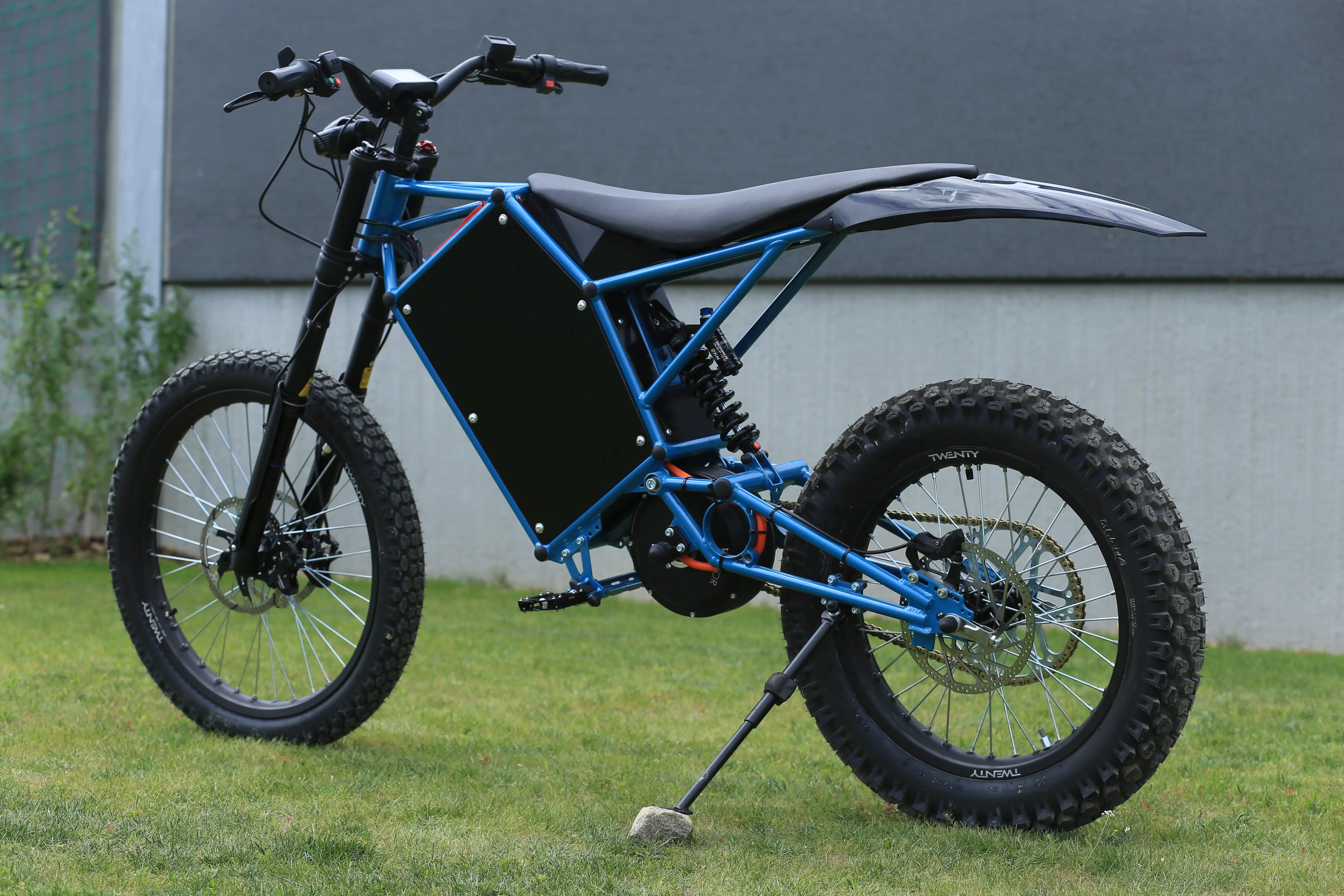

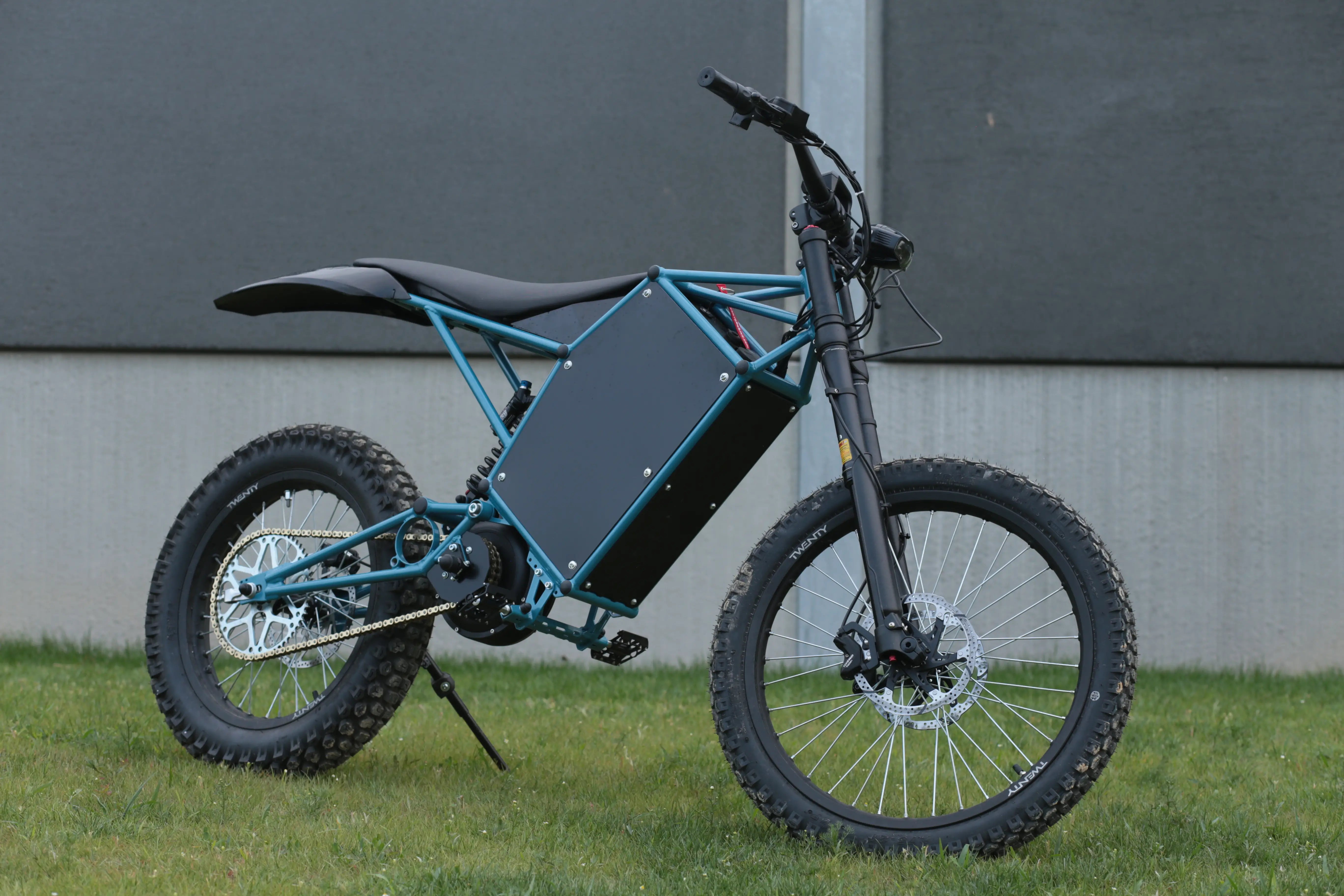

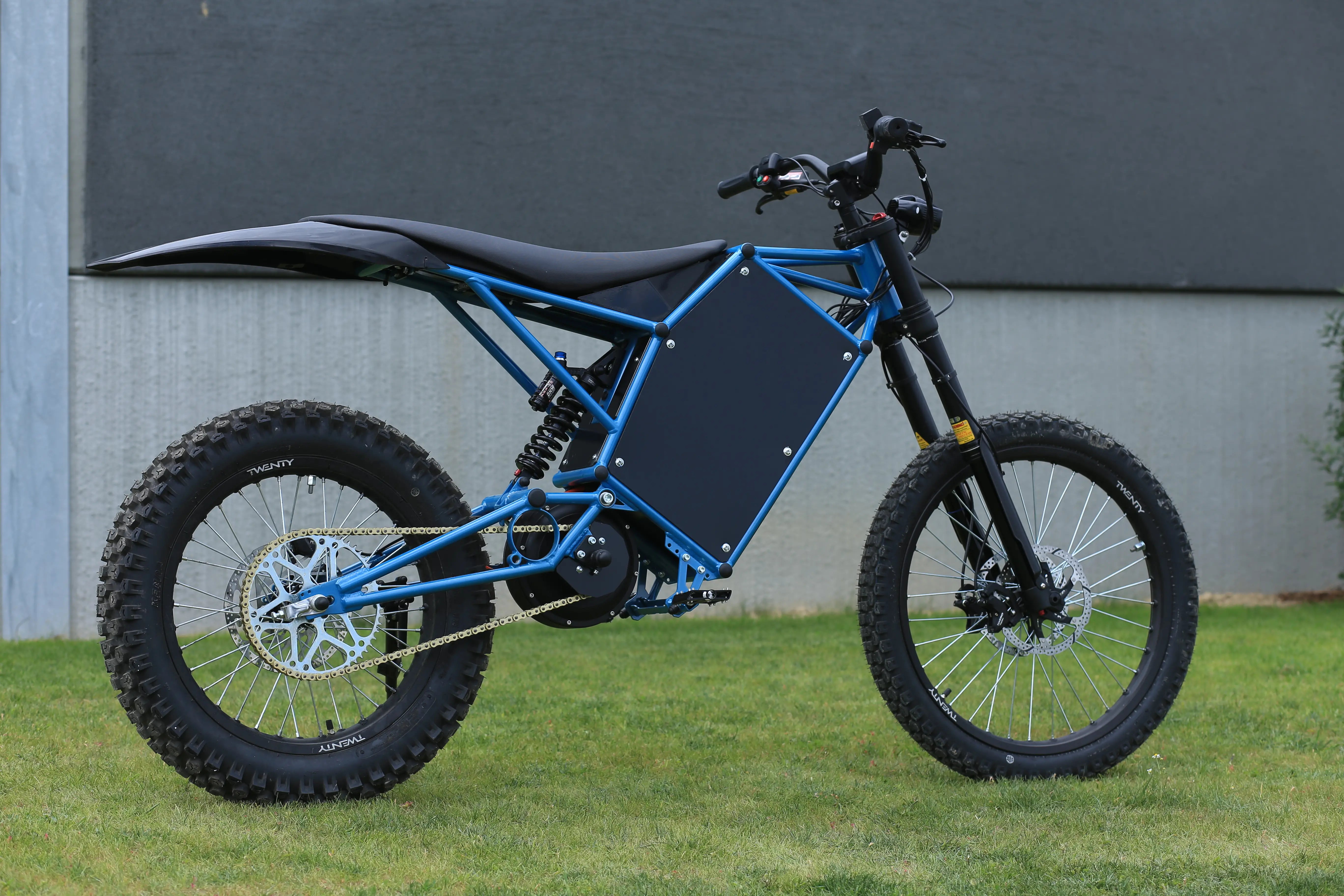

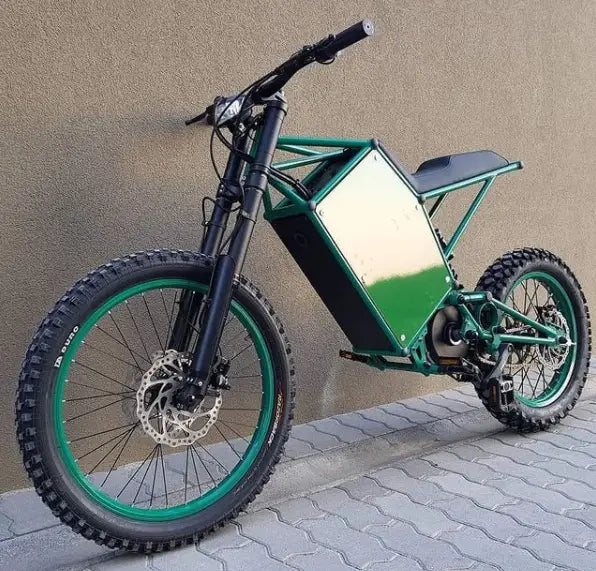

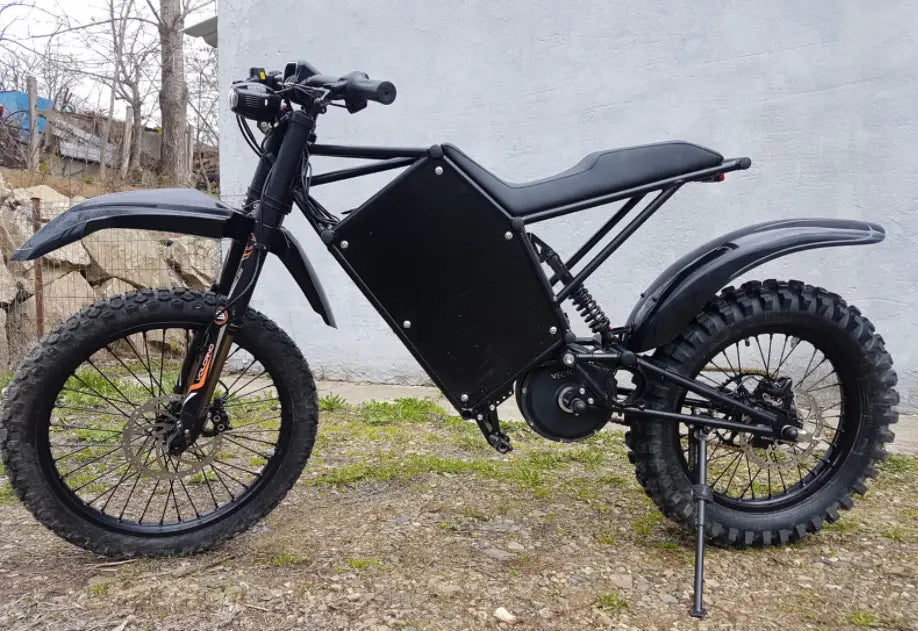

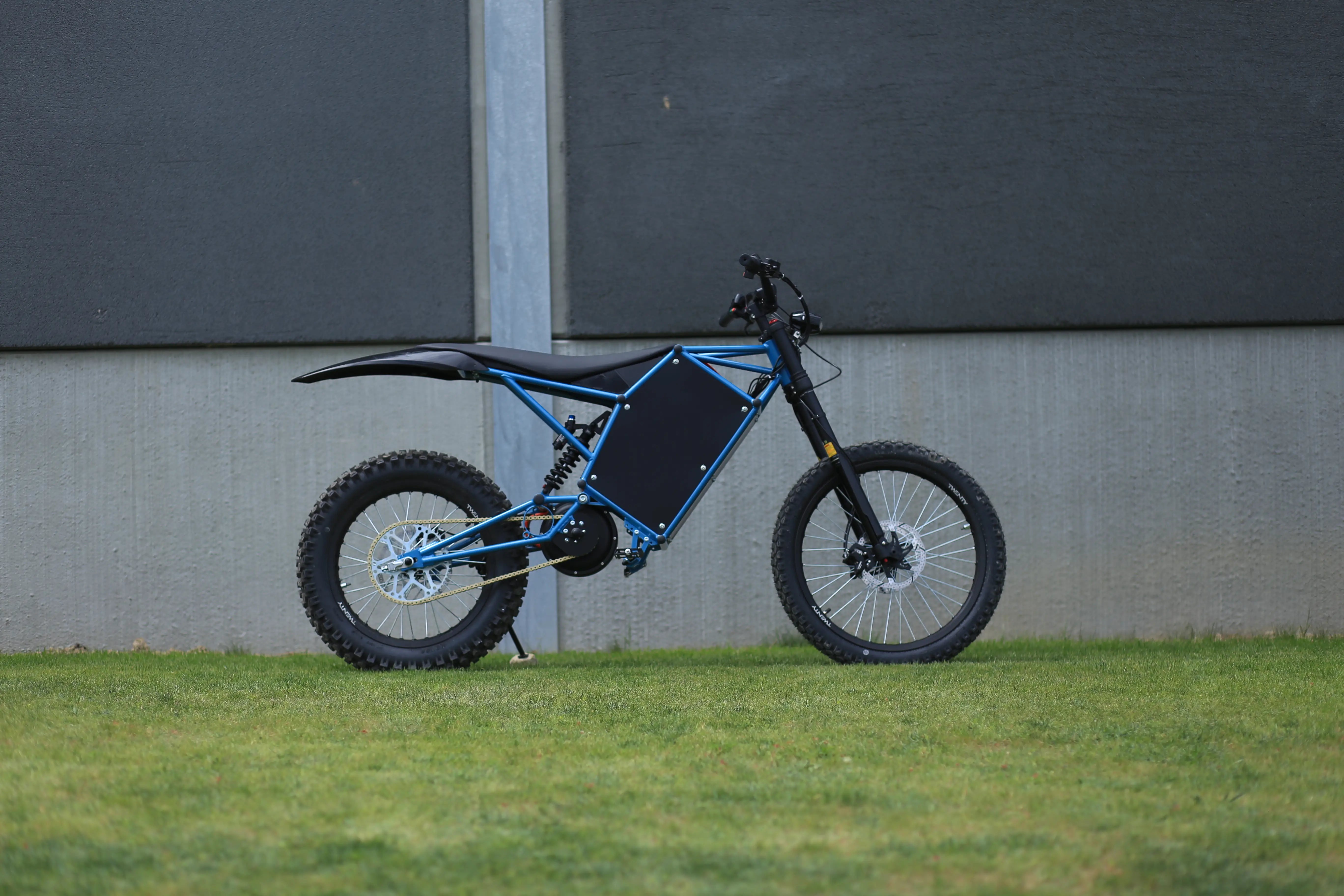

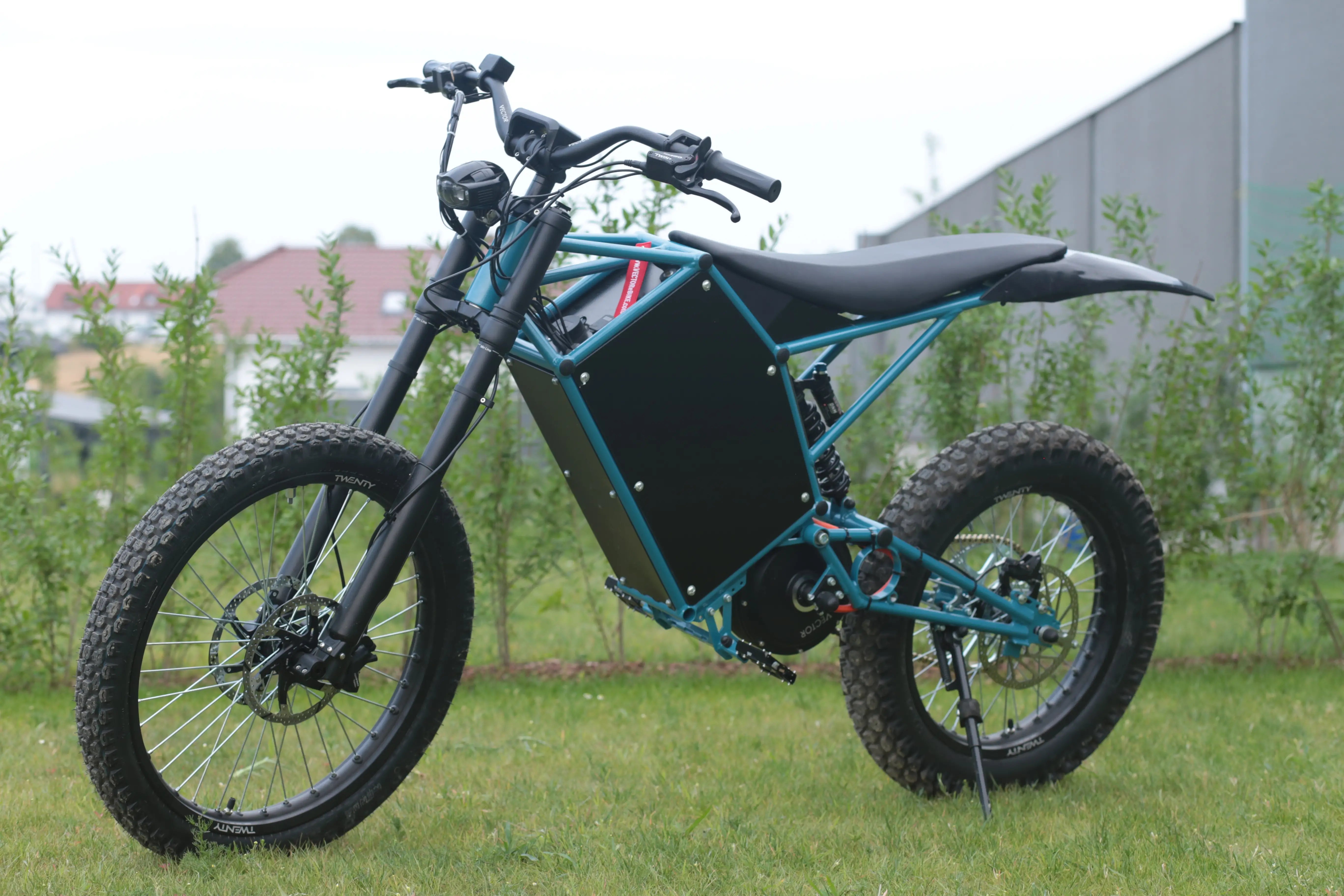

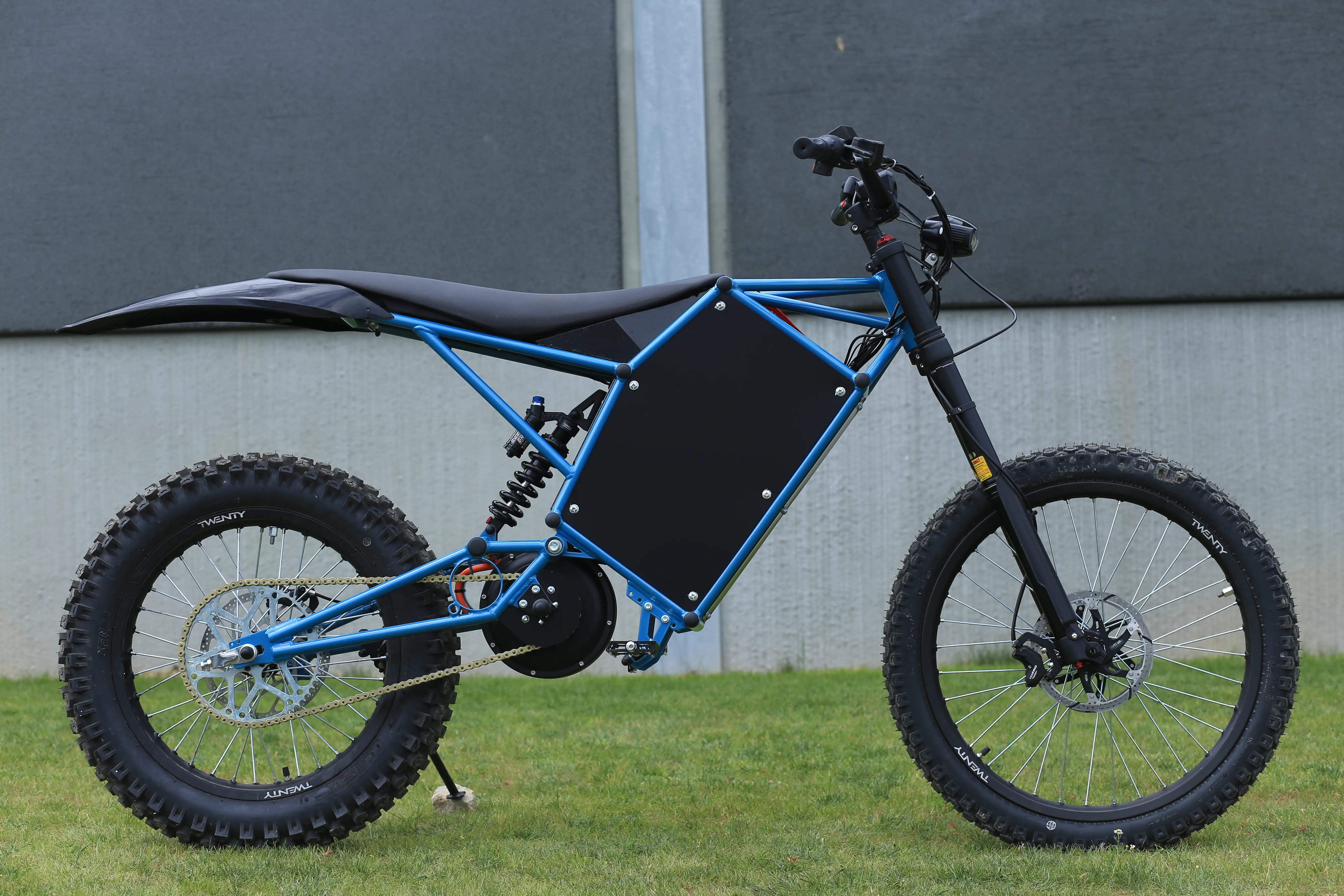

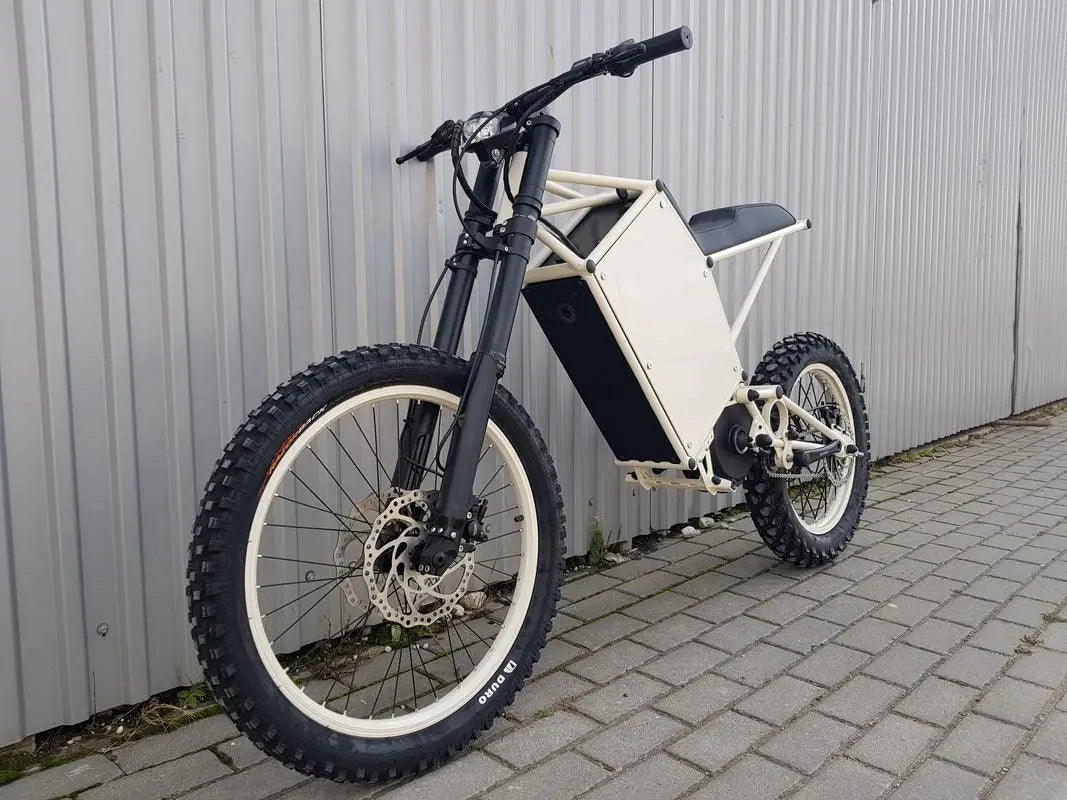

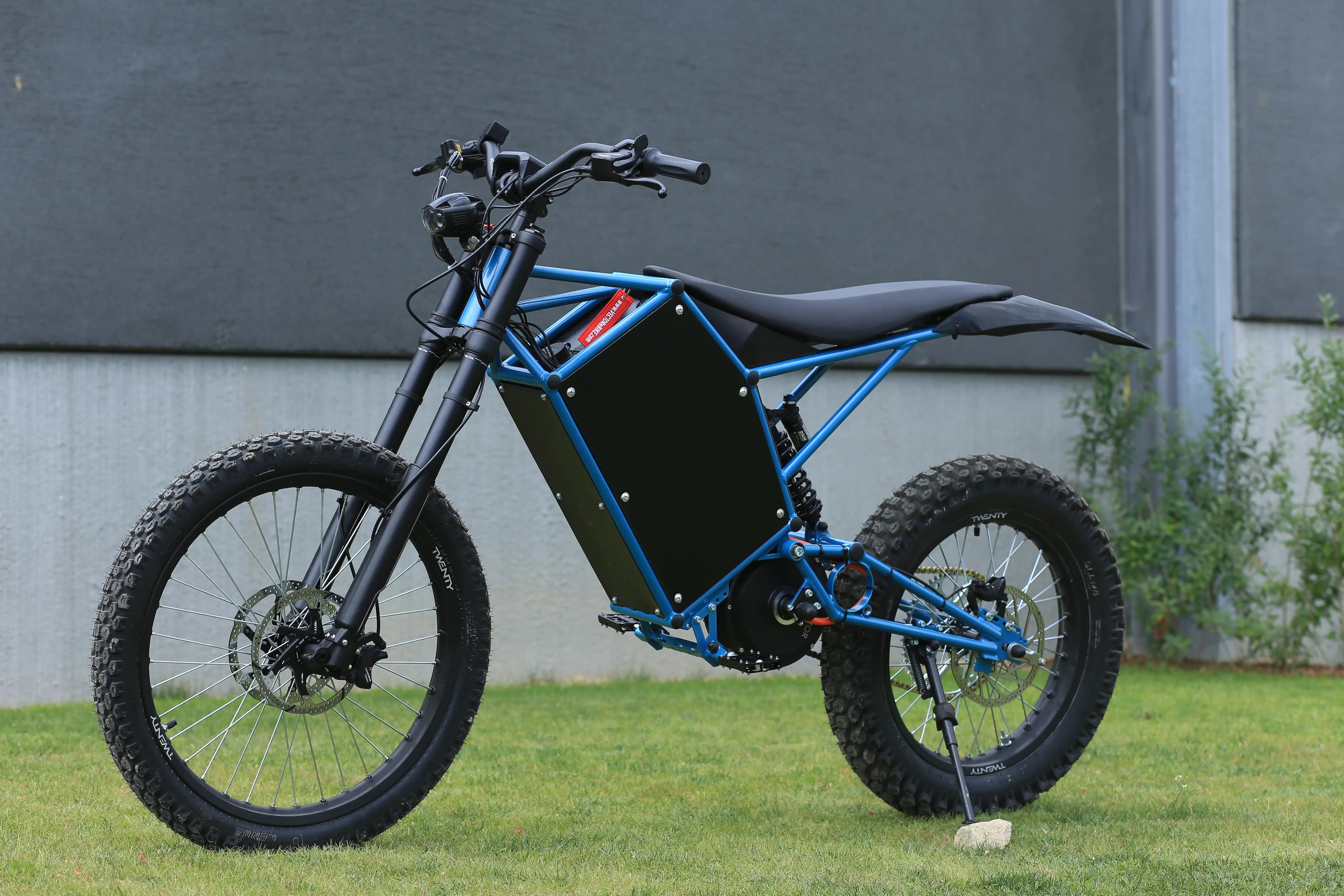

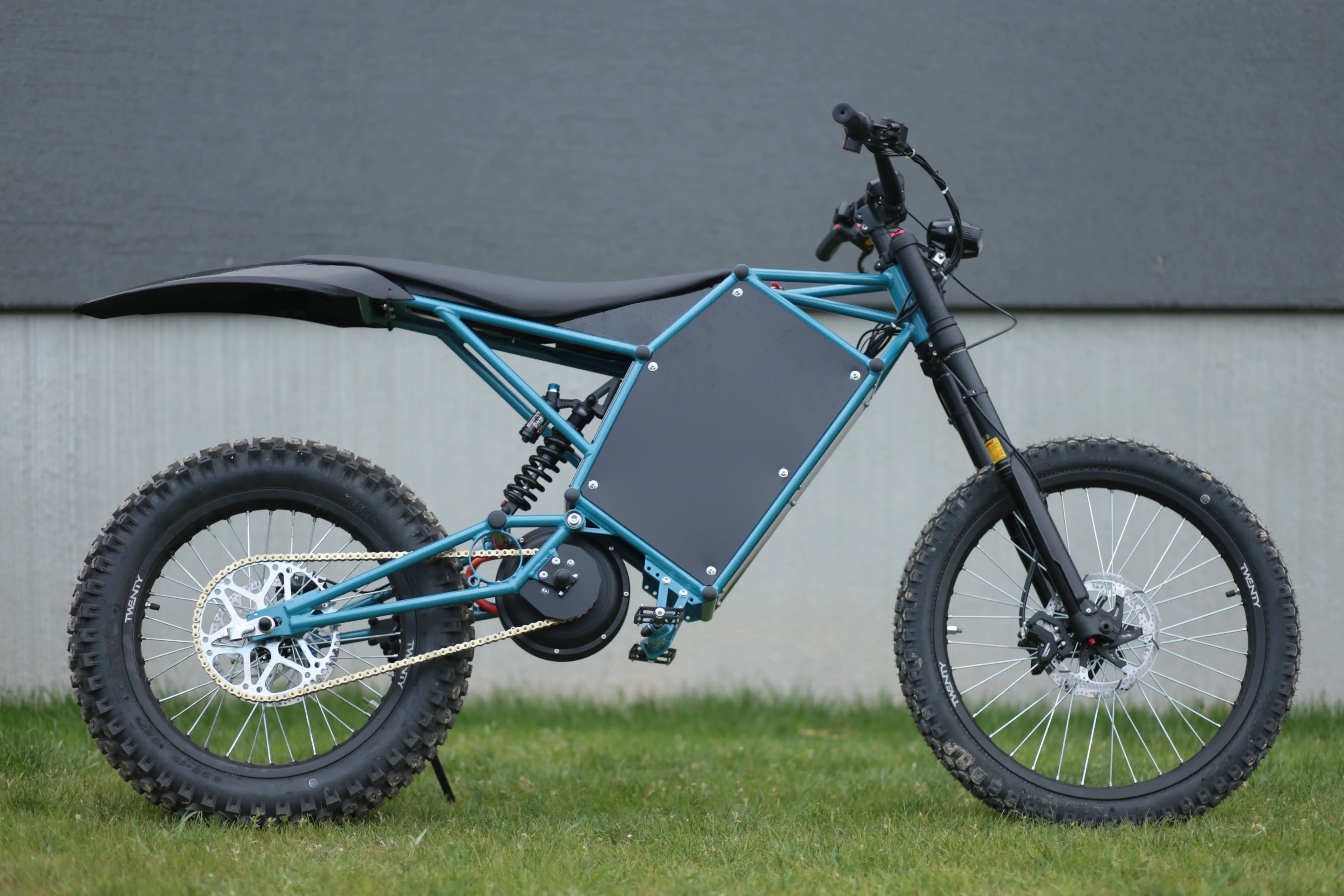

Vector Vortex

General

• Power-modes: 3 power modes switch (Rewerce, Eco, Boost) with speed limitation; can be programmed
• Max power: 10.000 Watt+
• Max speed: 80 kmh+ / 50 mph+
• Eco-mode top-speed: 25 km/h for EU
• Range: 200 km+ / 120 mi+ (average speed of 35 km/h, without pedalling) with 3.8kWh optional battery
• Battery capacity: 3.8 kWh(optional battery)
• Battery voltage: 72v nominal
• Weight: 69 kg
• Charge time: 120 min

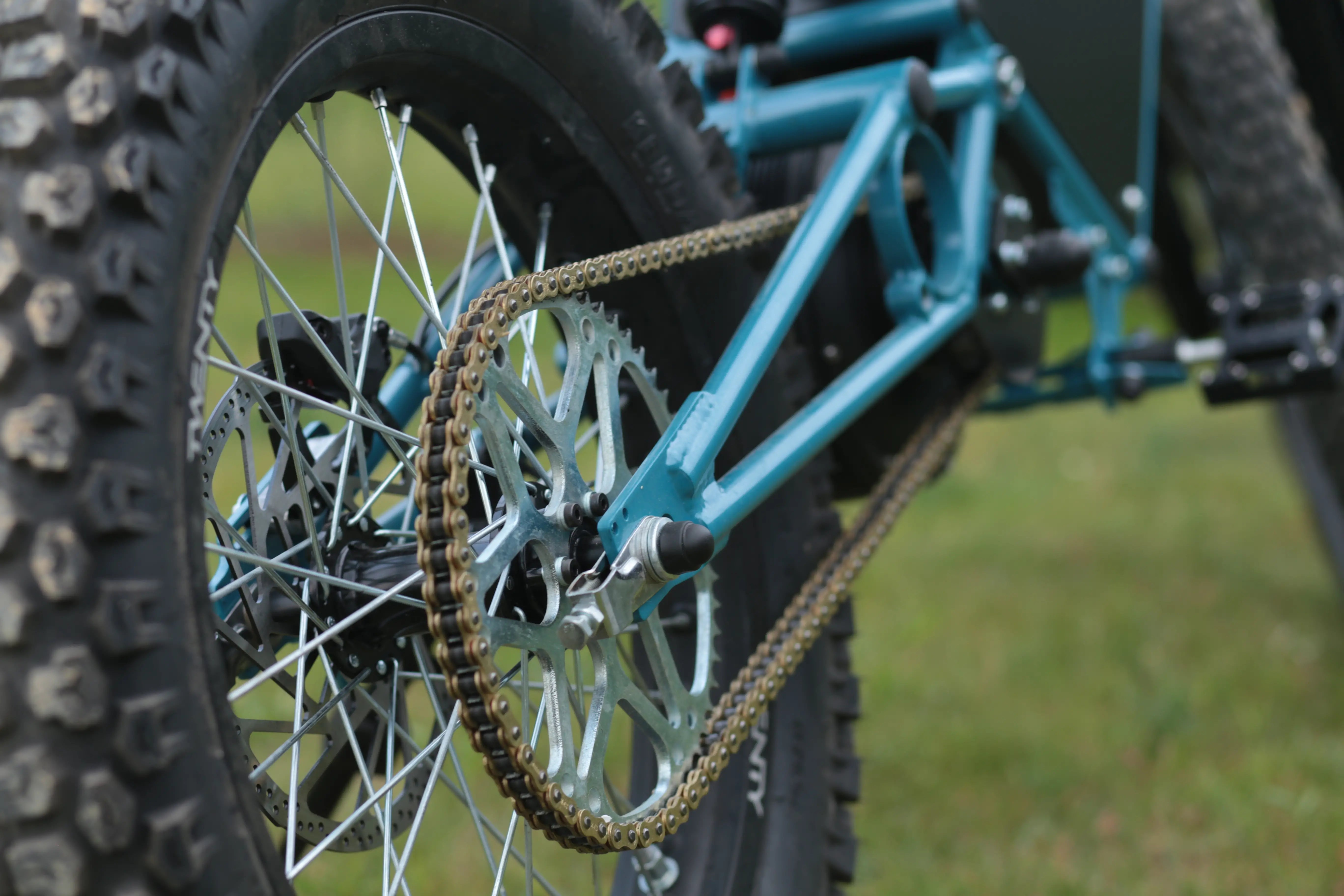

Drivetrain

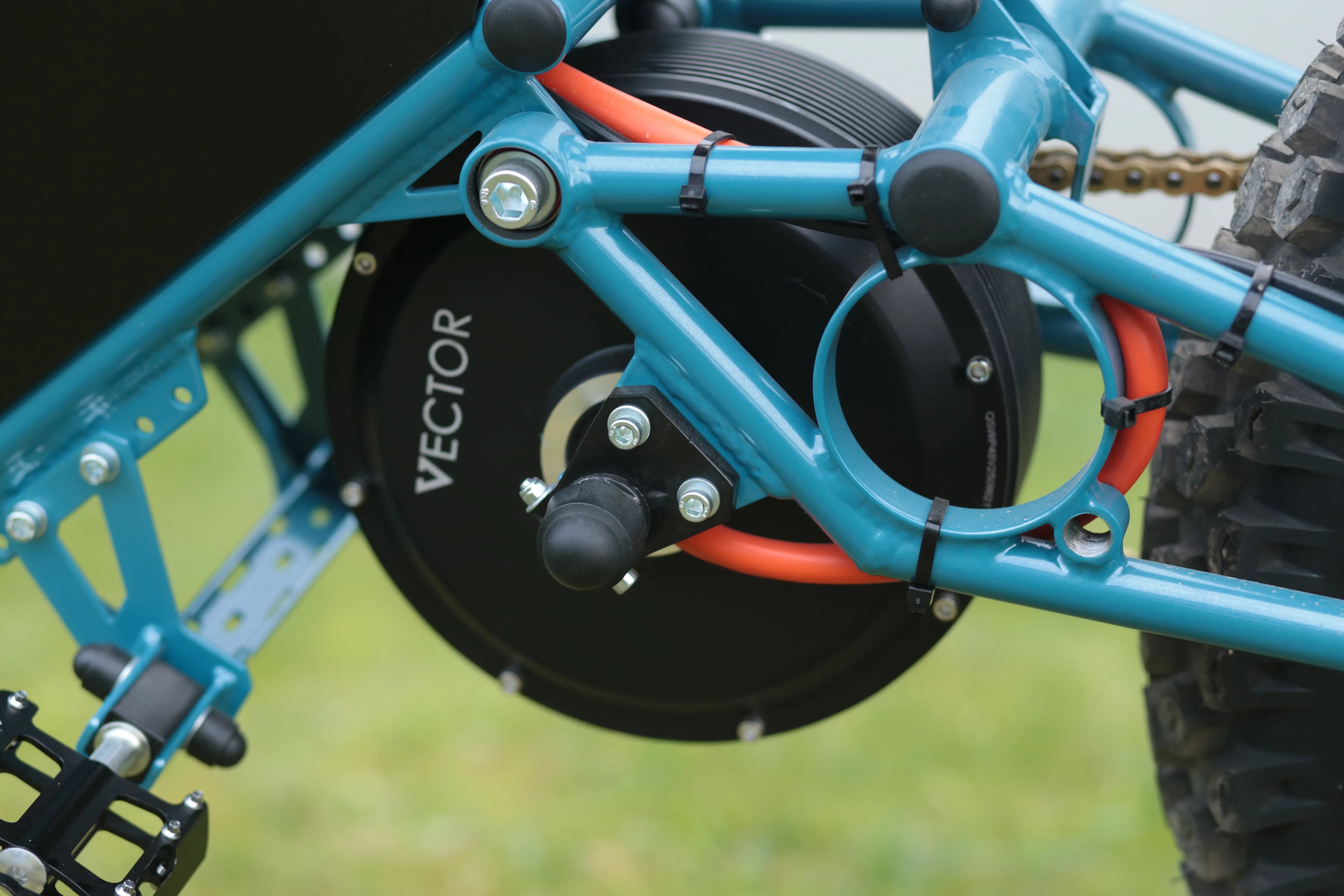

• Motor: Custom motor 50 mm Neodymium magnets 16 poles, 850 rpm
• Controller: Custom Kelly 7230s, 300 Amps
• Fork: Custom DNM USD8SA air, 200 mm travel

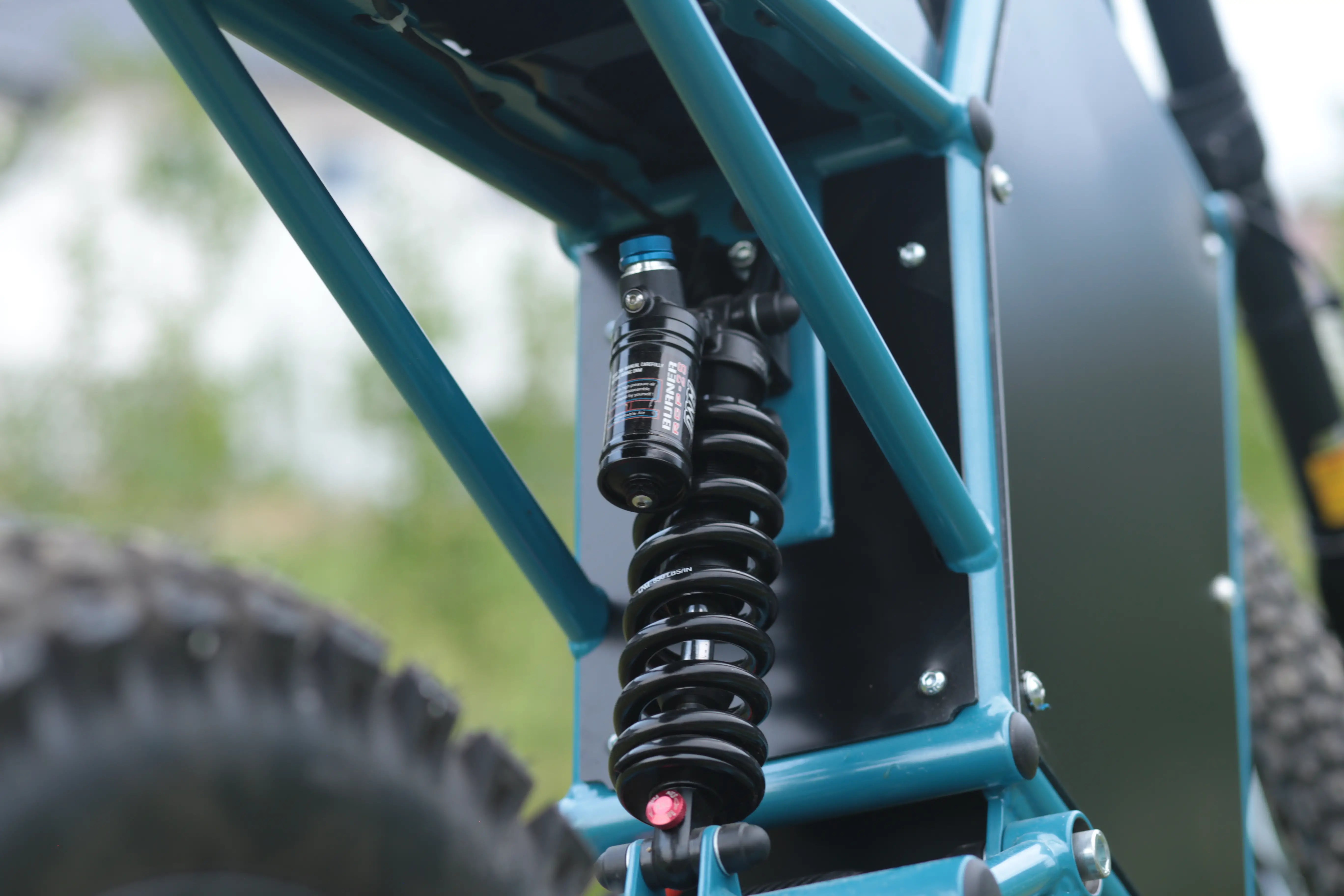

• Rear shock: 650/850 lbs spring, 220 mm DNM Burner 2S

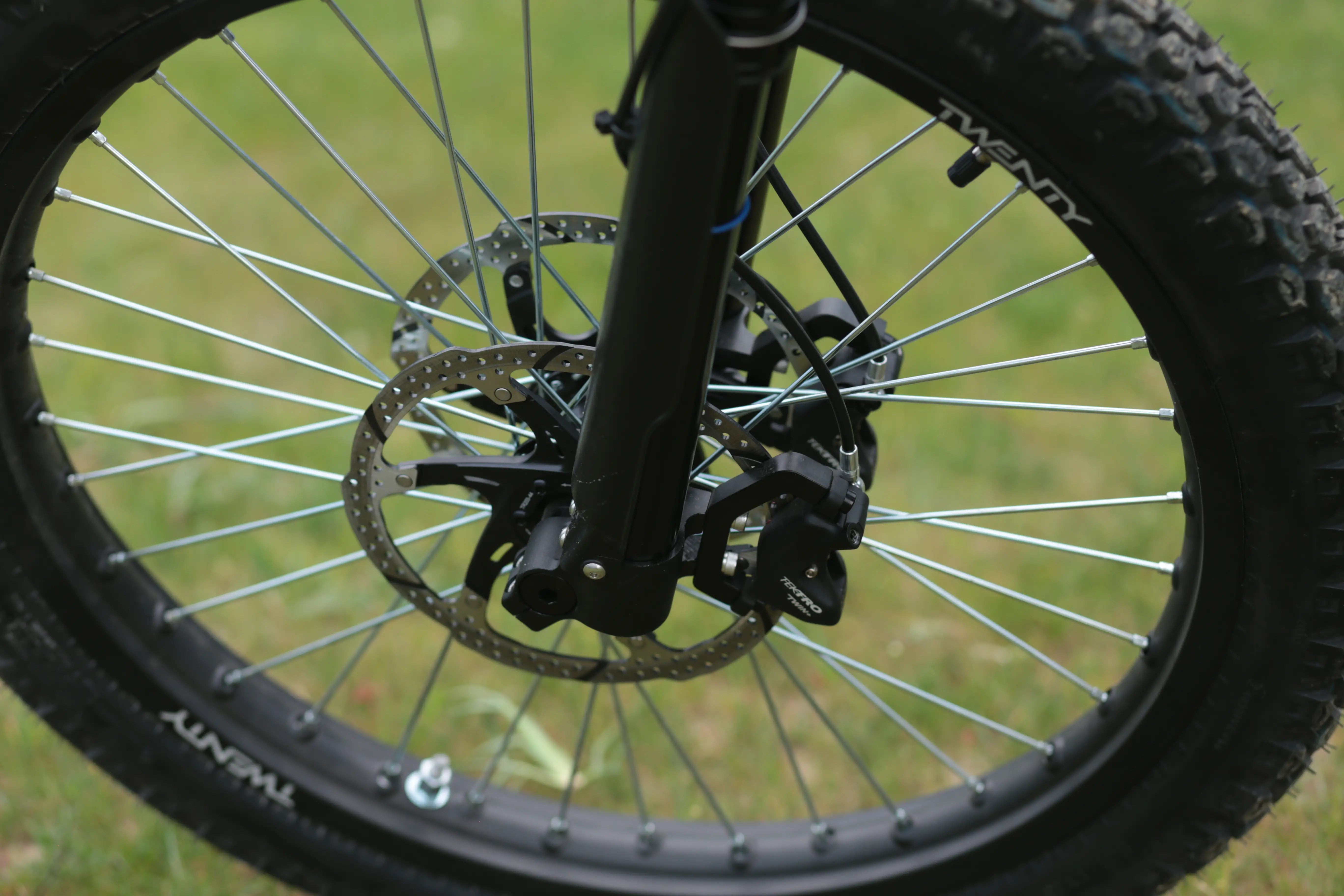

• Brakes front: Custom hydraulic Tektro Auriga dual calipers, 4 piston, 203 mm rotors
• Brakes rear: Custom hydraulic Tektro Auriga 4 piston, 203 mm rot
