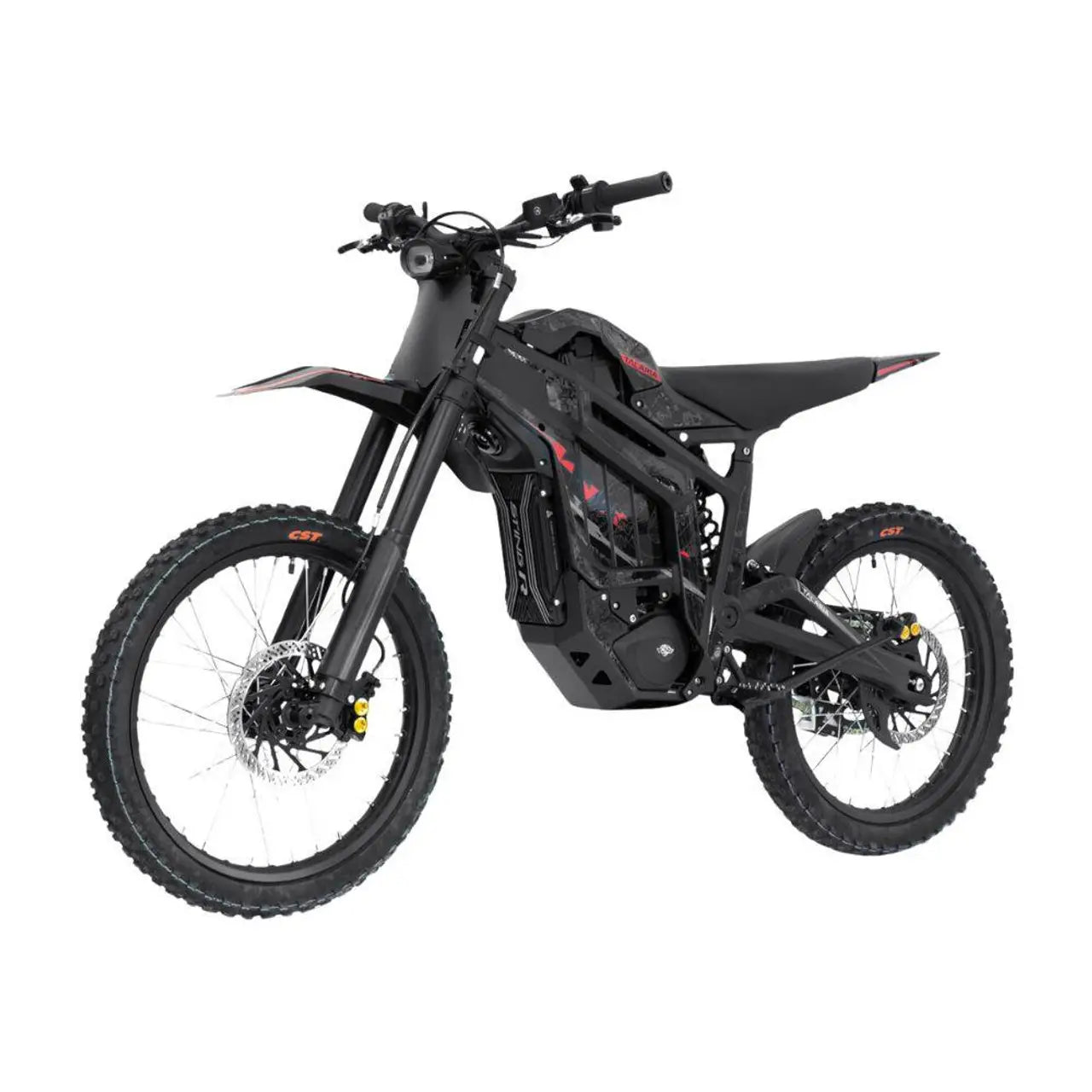

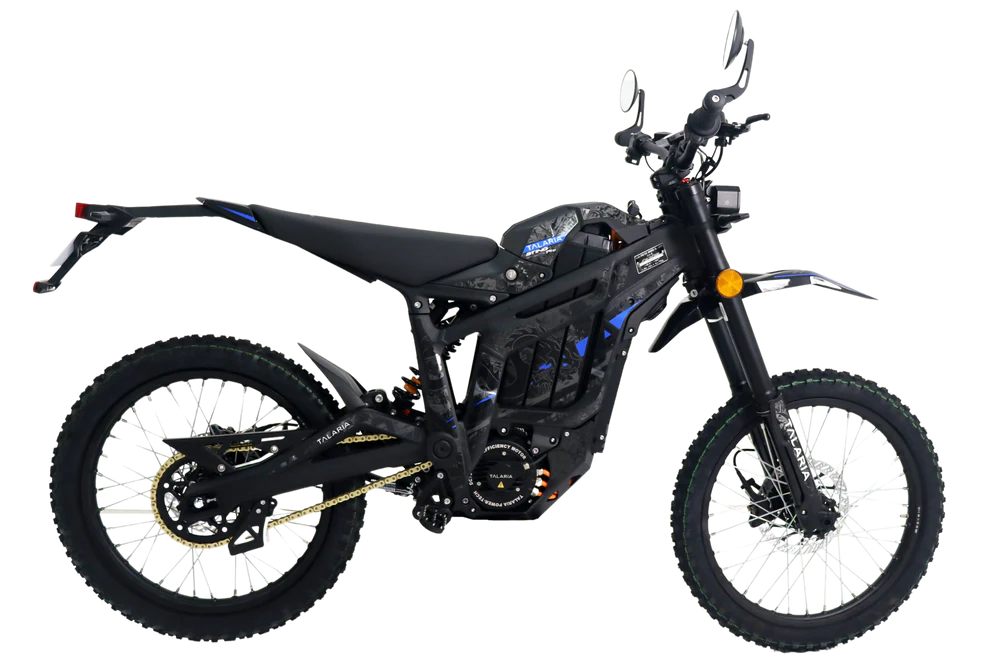

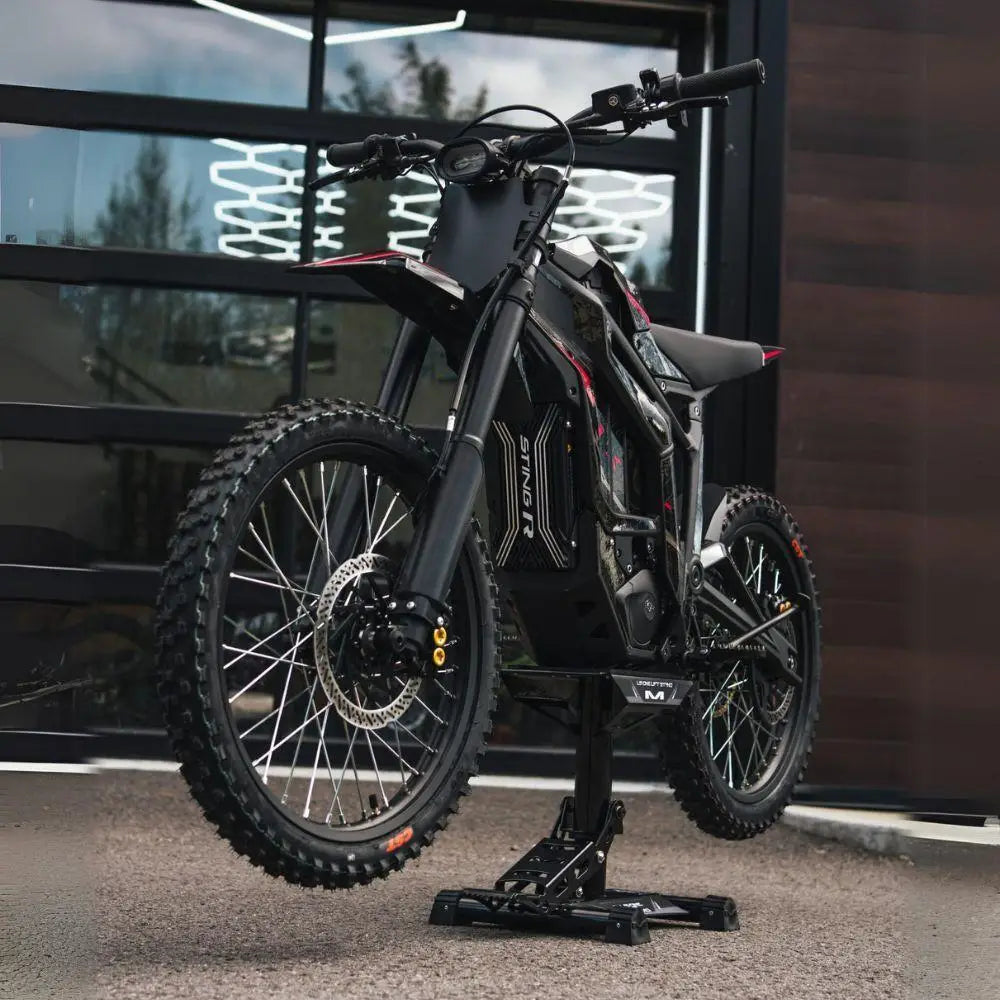

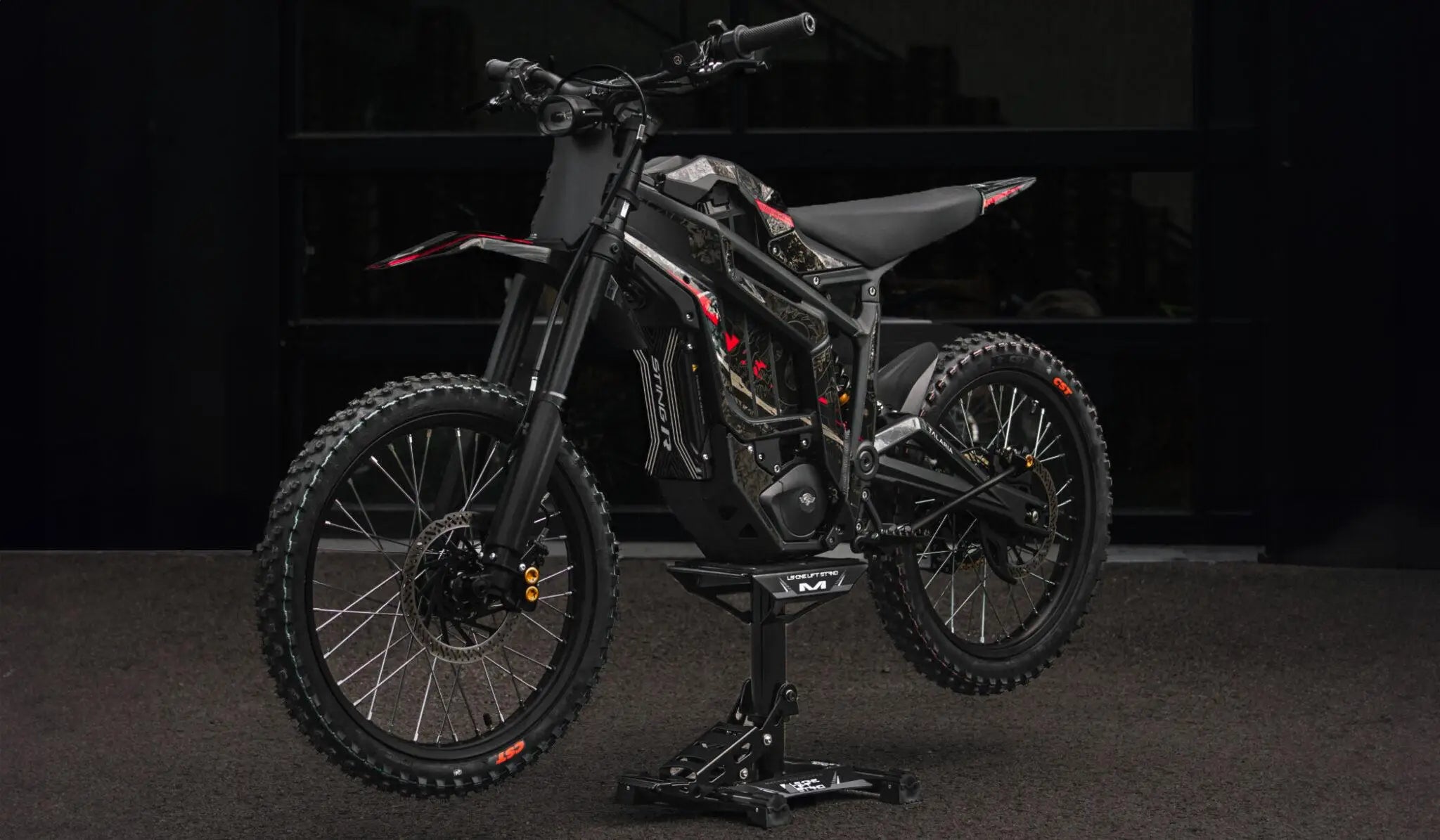

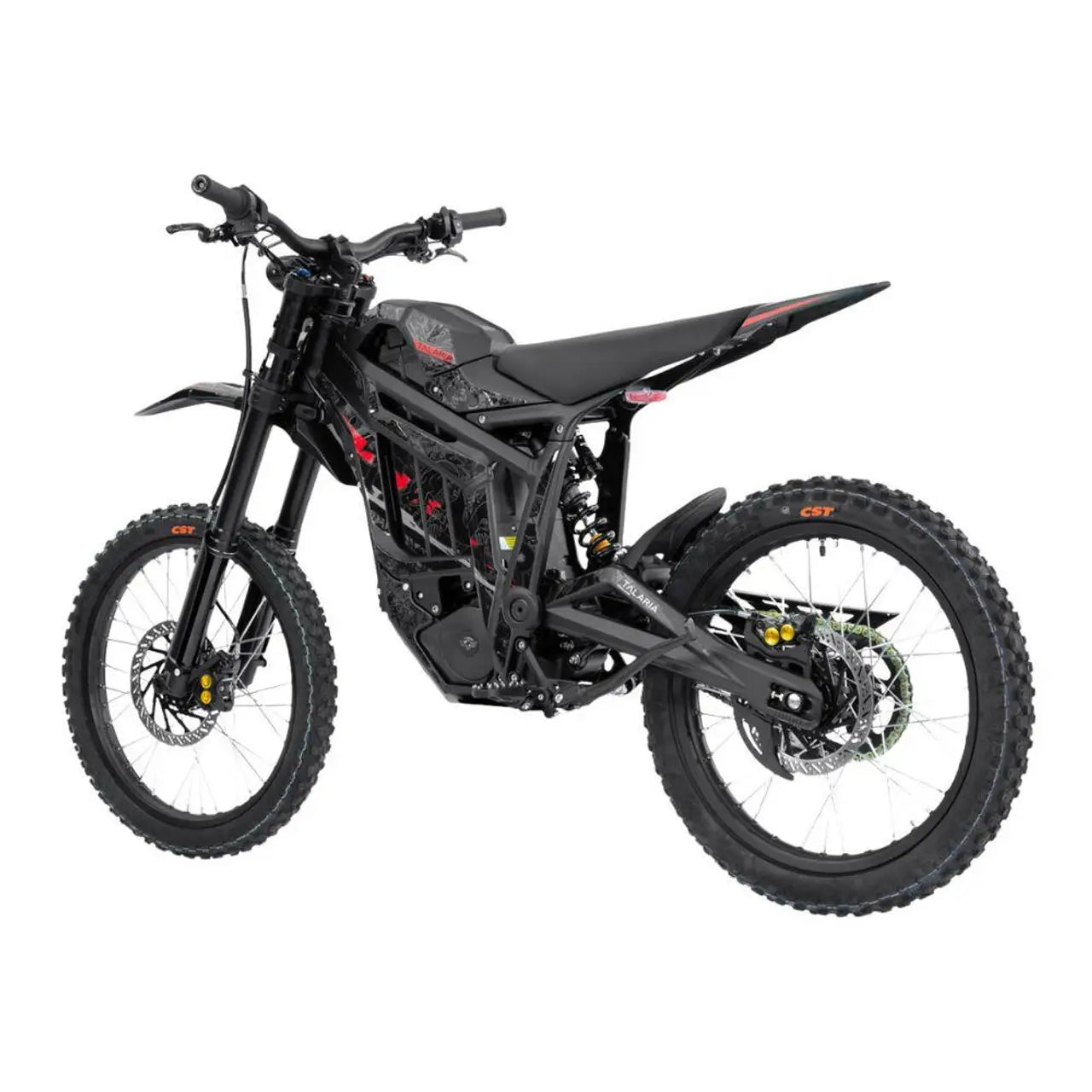

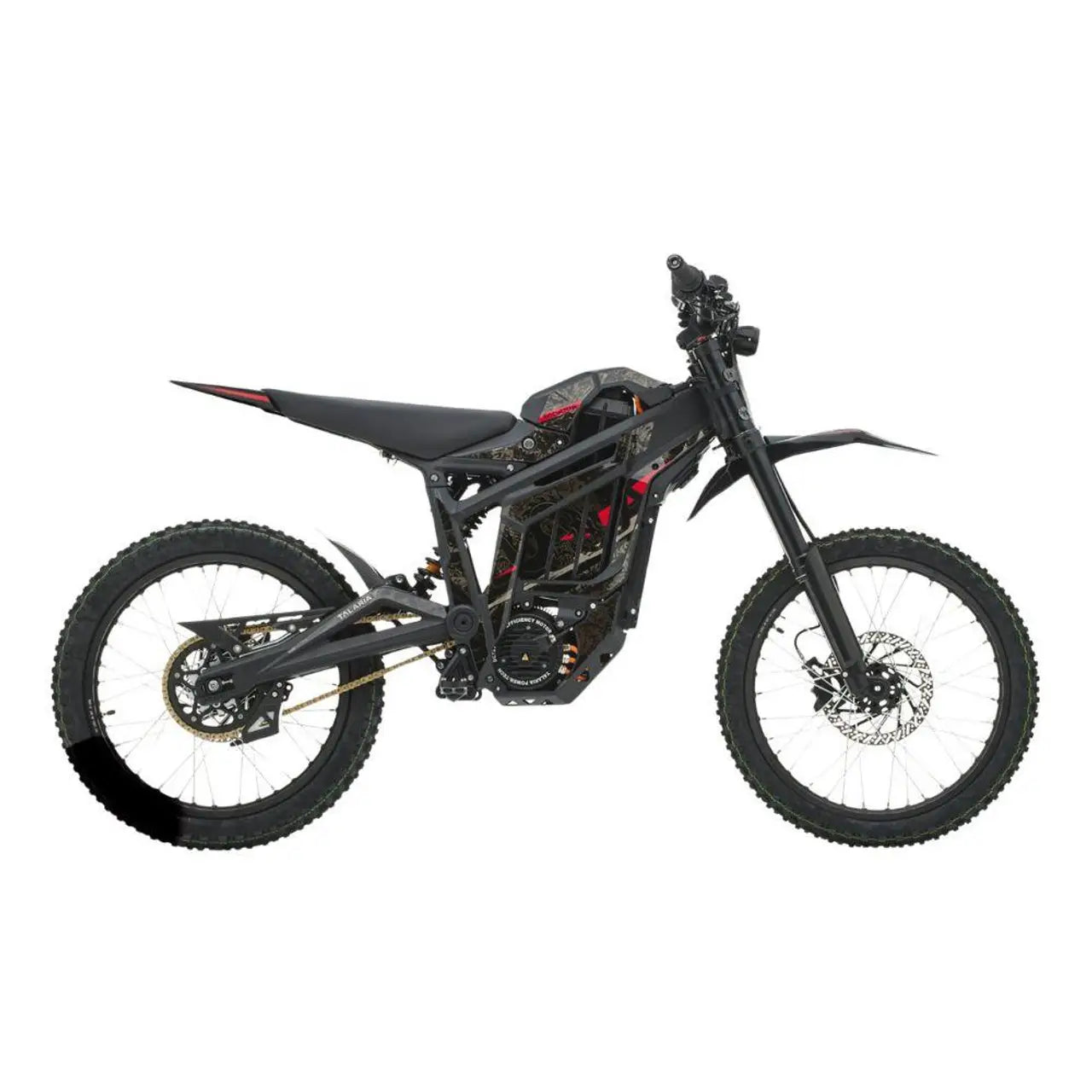

Talaria Sting Mx5 Pro

KEY FEATURES

• 72V 40Ah battery with Samsung 50S cells (2,880 WH)
• Improved braking power (220x3mm disc brakes, larger calipers & DOT redesigned master cylinders)
• Adjustable air & double spring suspension tuned for optimal off-road performance (improved over MX4)
• 3 riding modes including hyper performance mode (unique to the MX5)
• CNC machined black footpegs
• Colour TFT Display
• Straight-pull CNC machined wheel hubs with reinforced spokes

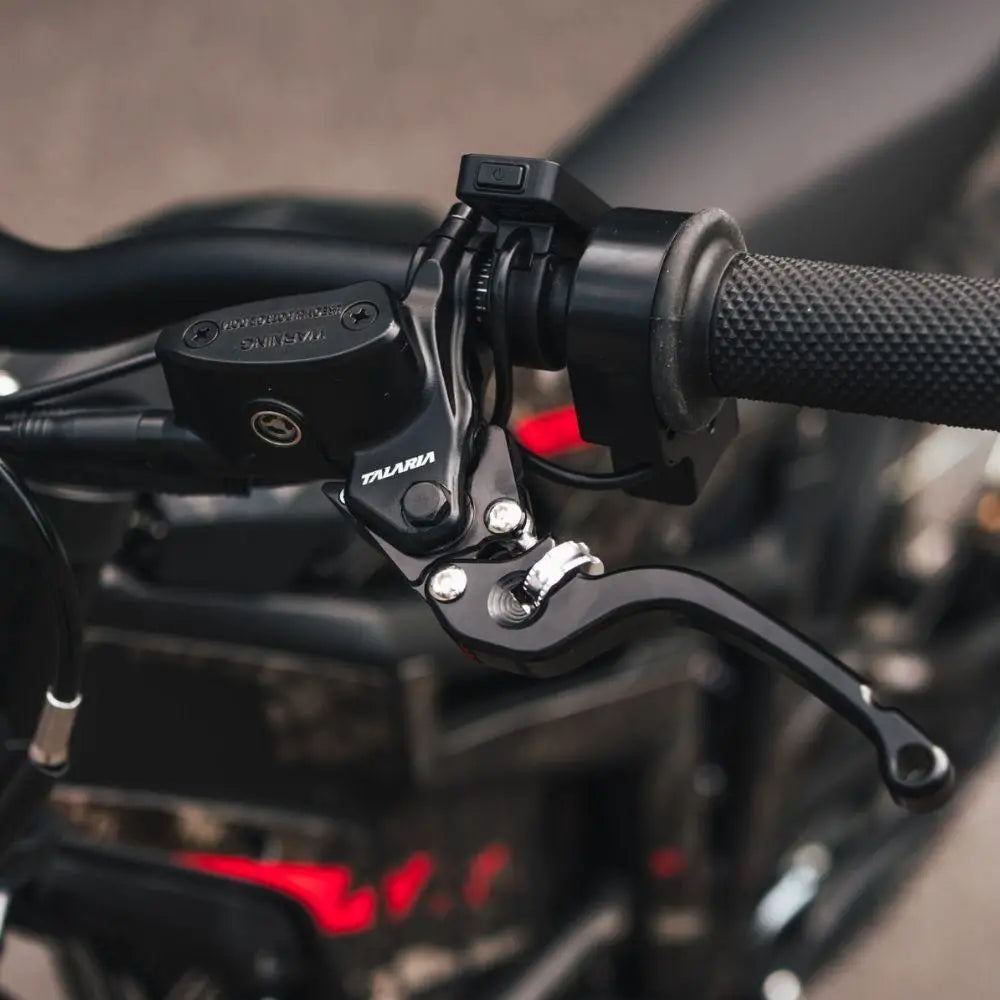

• Regenerative braking (including regenerative brake lever)
• Headlight switch​
• Internal reinforced gearbox for quiet, reliable power (no more worn out or snapped belts)

VEHICLE

• Chassis Material: 6061 T4 & T6 aluminium alloy
• Process Method: Forged under 6,000 tonnes of pressure
• Surface Method: Anodizing

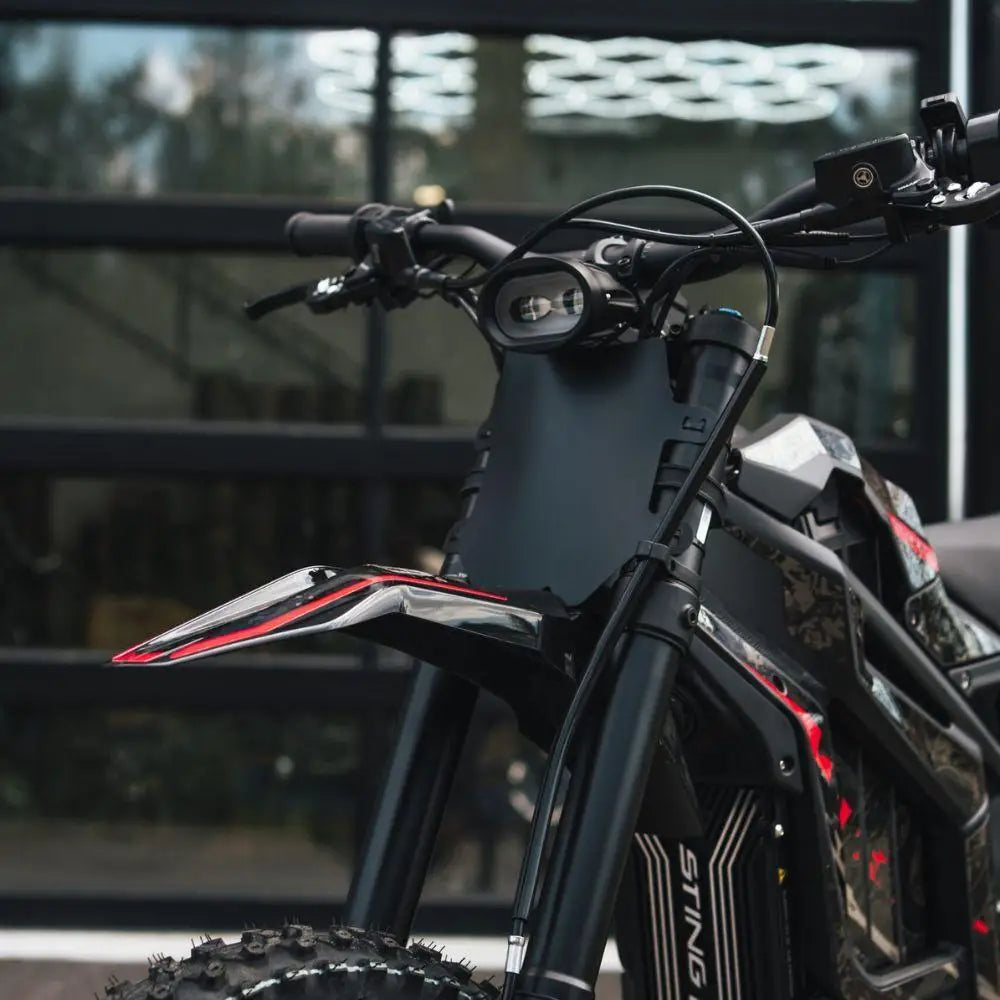

• Headlight: LED

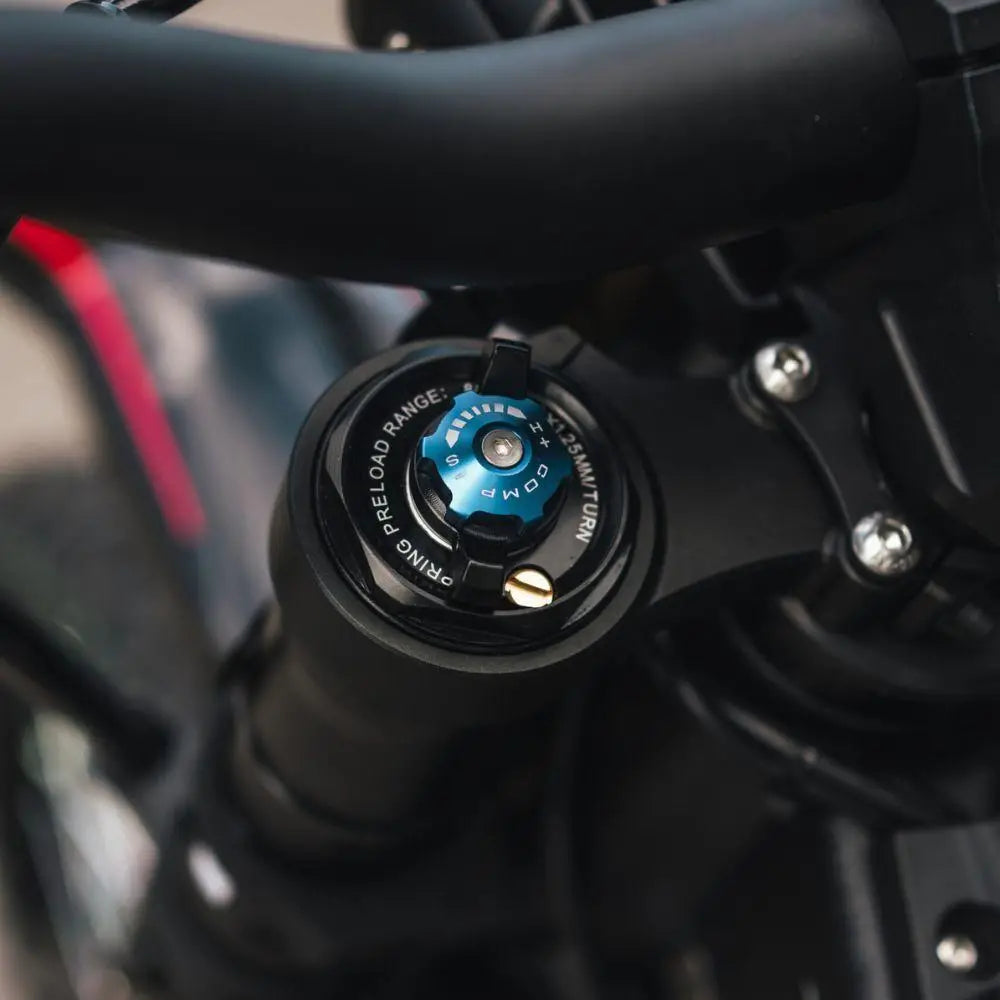

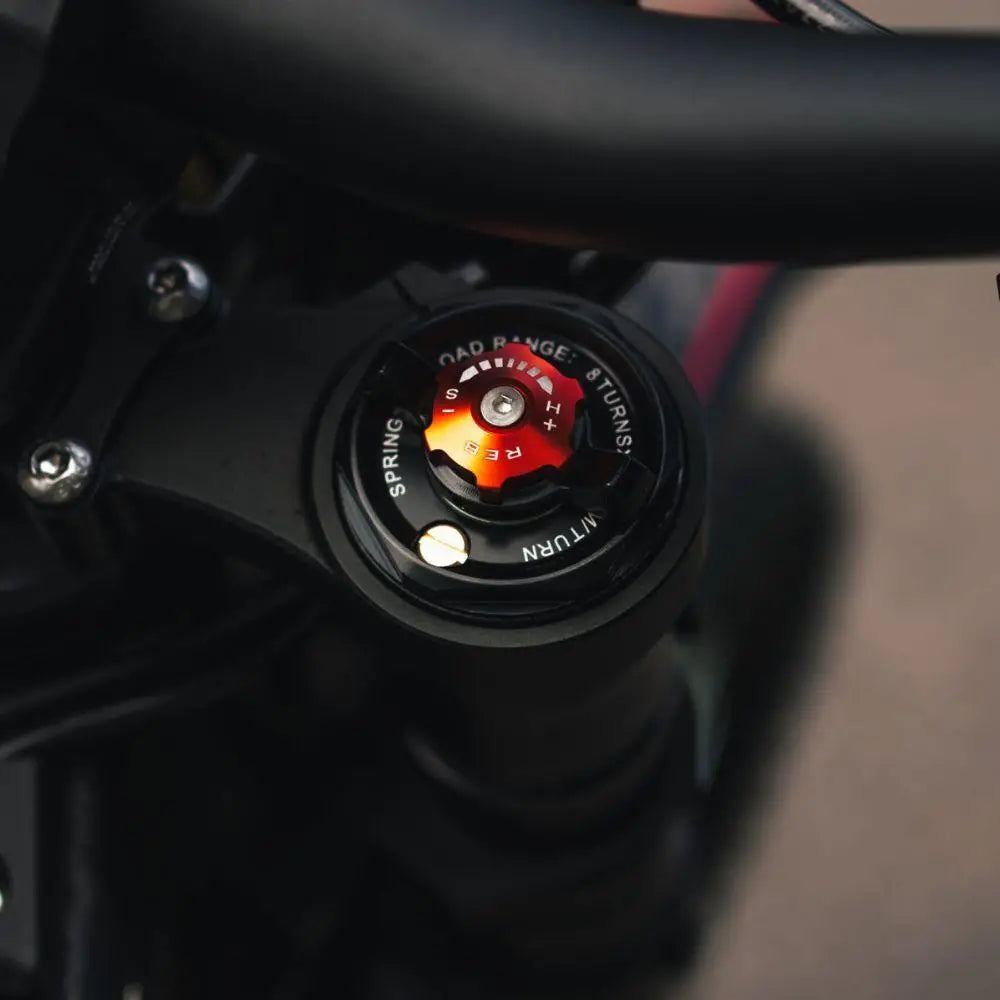

• Front Fork: Adjustable air + dual spring (220mm travel)

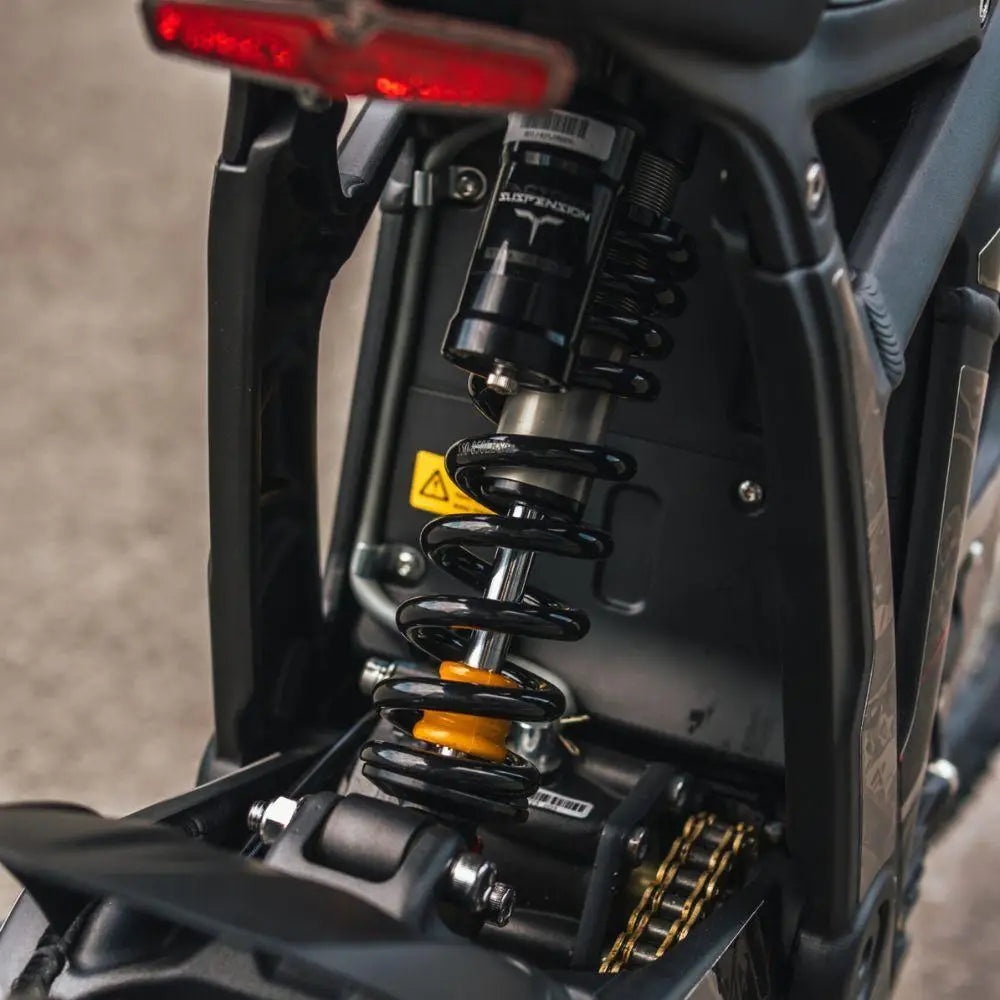

• Rear Shock: Adjustable 85mm travel with linkage
• Wheel Size: 1.4×19 in. front / 1.6×19 in. rear
• Tires: FR 70/100-19  /  RR 80/100-19 off-road tires
• Max Range: 100 km @ 25 km/h (62 miles @ 15 mph)
• Net Weight: 76 kg (159 lbs) with battery
• Vehicle Dimensions: 1,880 x 770 x 1,088mm (74 x 30.3 x 42.8 in)
• Seat Height: 840mm (33.1 in)
• Wheelbase: 1,250mm (49.2 in)
• Handlebar Length: 760mm (29.9 in)
• Ground Clearance: 300mm (11.8 in)
• Max Climbing Angle: 45°
• Max Recommanded Load: 100 kg (220 lbs)

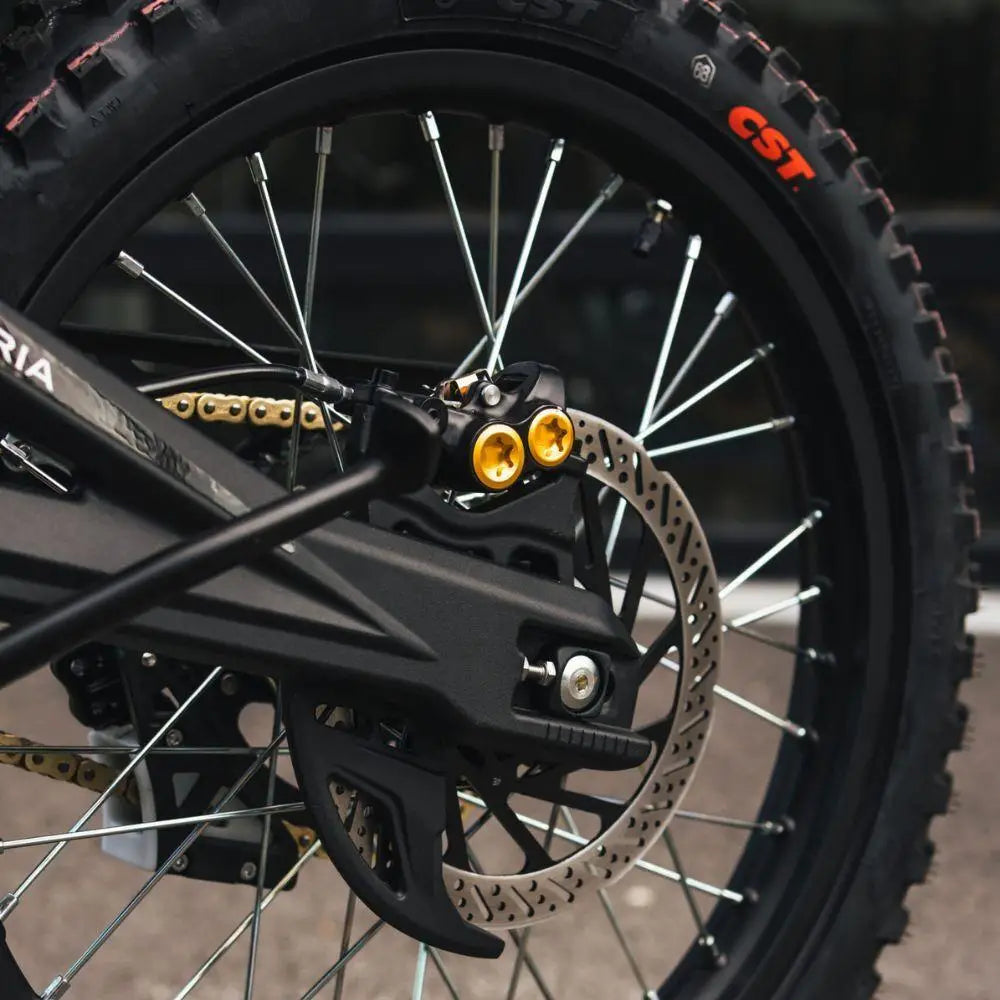

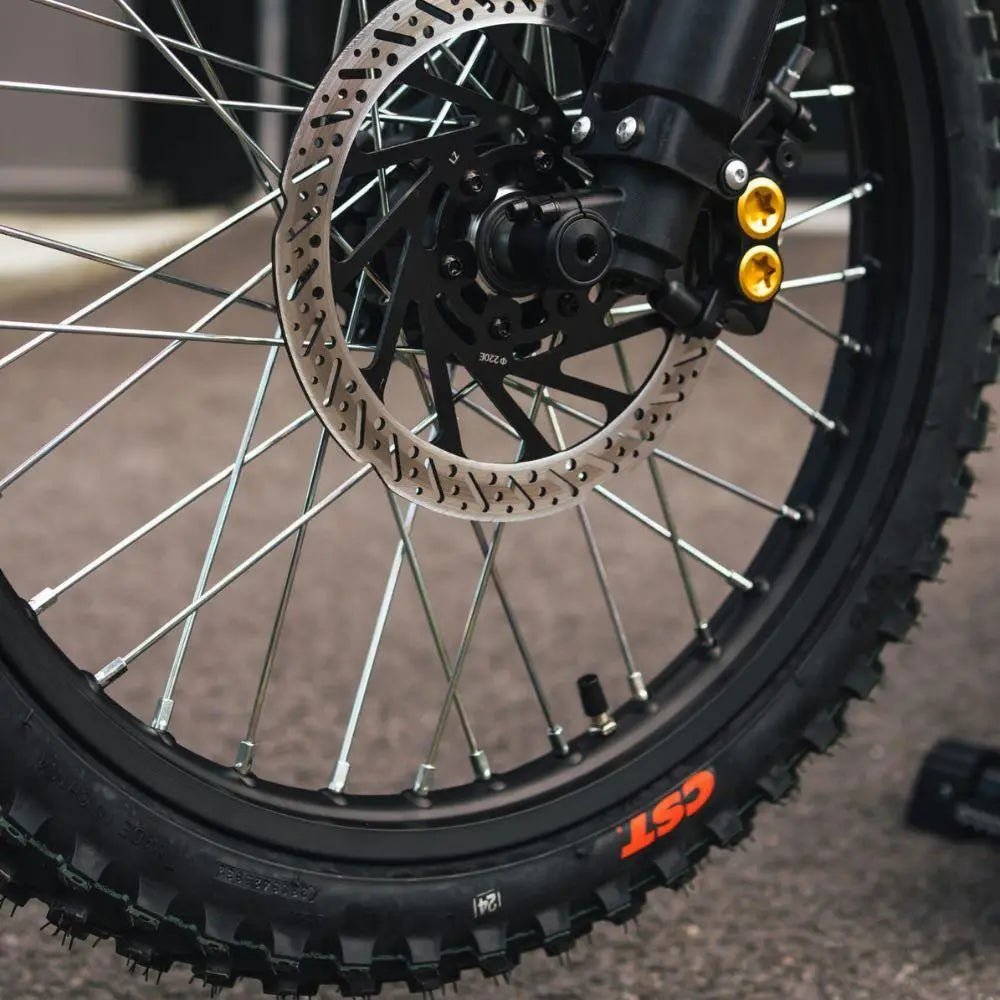

• Brakes: Hydraulic FR/RR improved 4-pistons
• Brake Disc: 220mm x 3mm

POWER

• Nominal Voltage: 72V (DC)
• Maximum Speed: Factory limited to 32 km/h (20 mph)
• Torque: 500N.m (428 48T sprocket)
• Rated Power: 5.5 kw (Unrestricted)
• Peak Power: 13.4 kw (Unrestricted)
• Power Mode: Eco / Sport / Hyper

ELECTRONIC

• Battery Pack: 72V 40AH
• Battery Cells: Samsung 50S
• Display: TFT – Speed, battery level, voltage, odometer
• Regenerative Braking: 4-level adjustment + regenerative brake lever

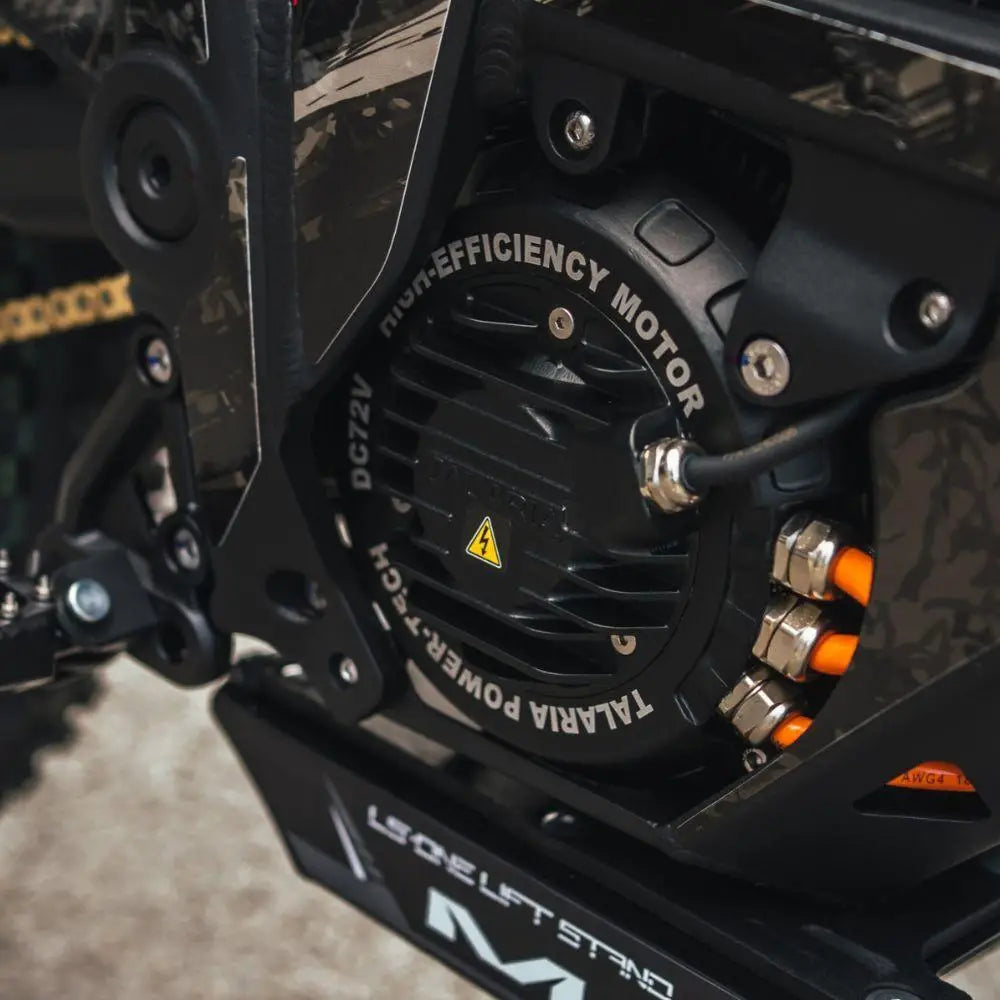

MOTOR

• Motor type: DC IPM
• Mounting Position: Mid-mounted
• Motor Cooling: Air-cooled

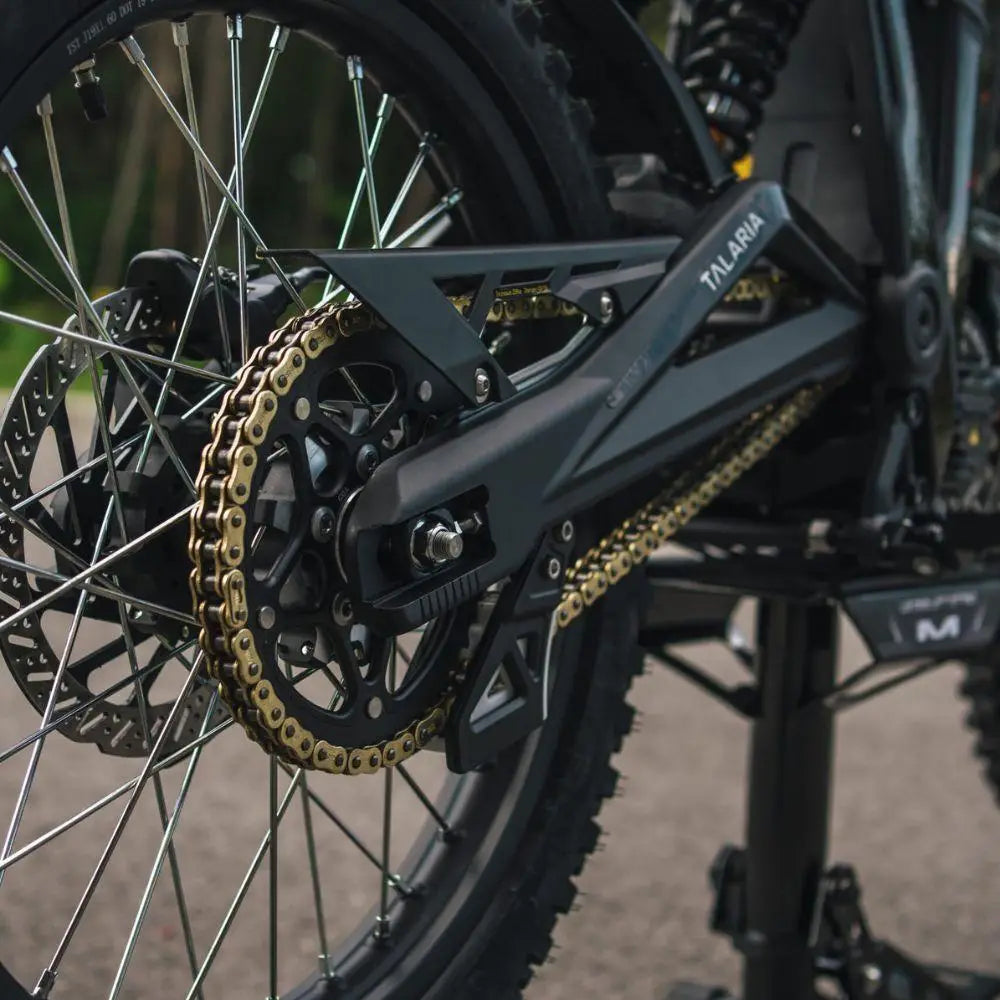

TRANSMISSION

• Primary Transmission: Gearbox
• Drive Transmission: 418-108T Chain
• Rear Sprocket: 48T
