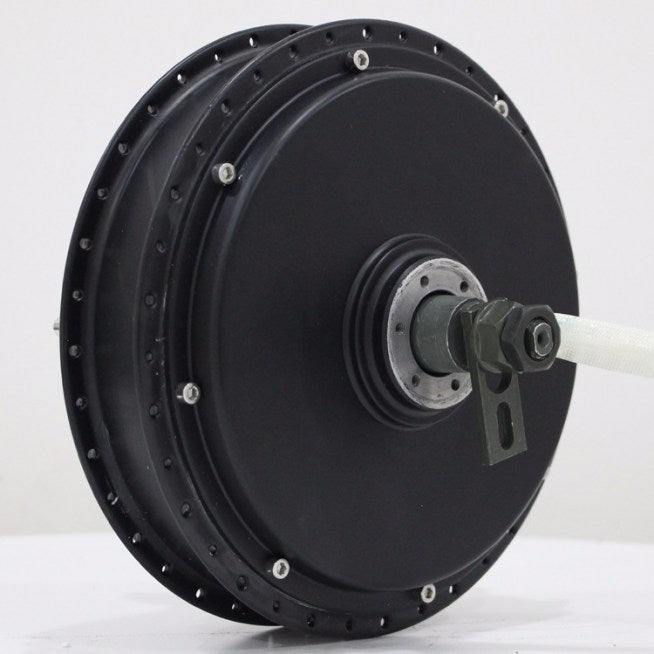

QS 205 V3 Custom Modified for Typhoon

Speed: 40x 3T 13kv, 30x4T 11 kv, 24*5T 9.03 kv, 17x7T 6kv

Clamping Width (150mm) 14mm English thread for single-speed Freewheel
150mm axel width
2 sets of Hall sensors for redundancy, temp sensor, and thick 10AWG phase wires to handle high power

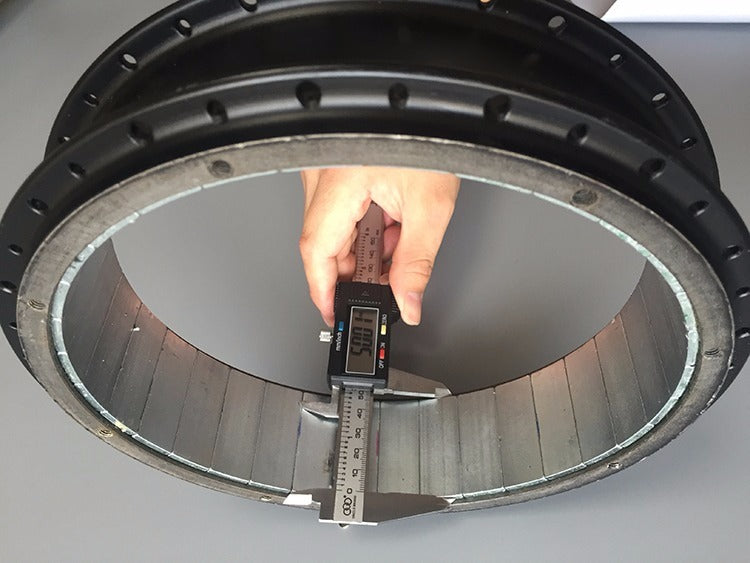

50mm wide magnets

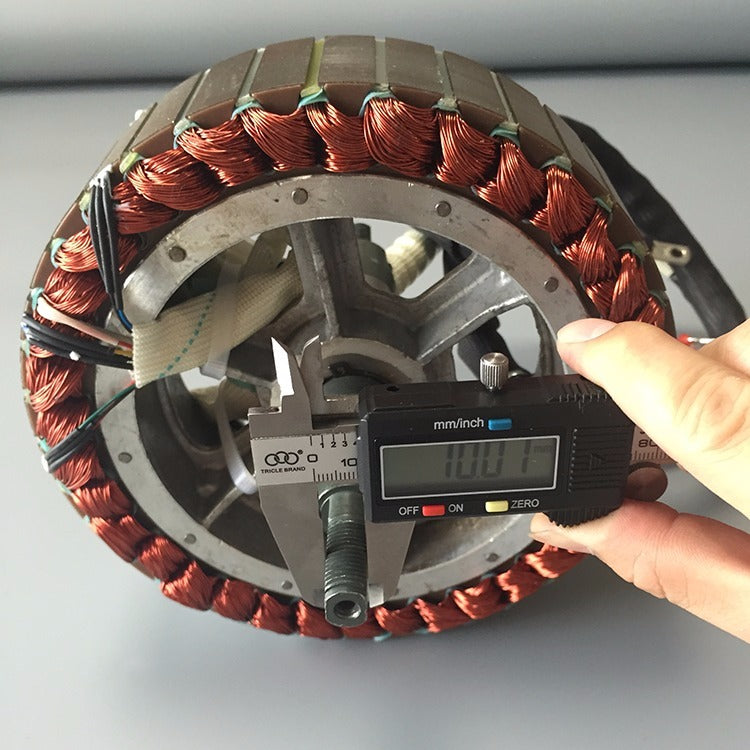

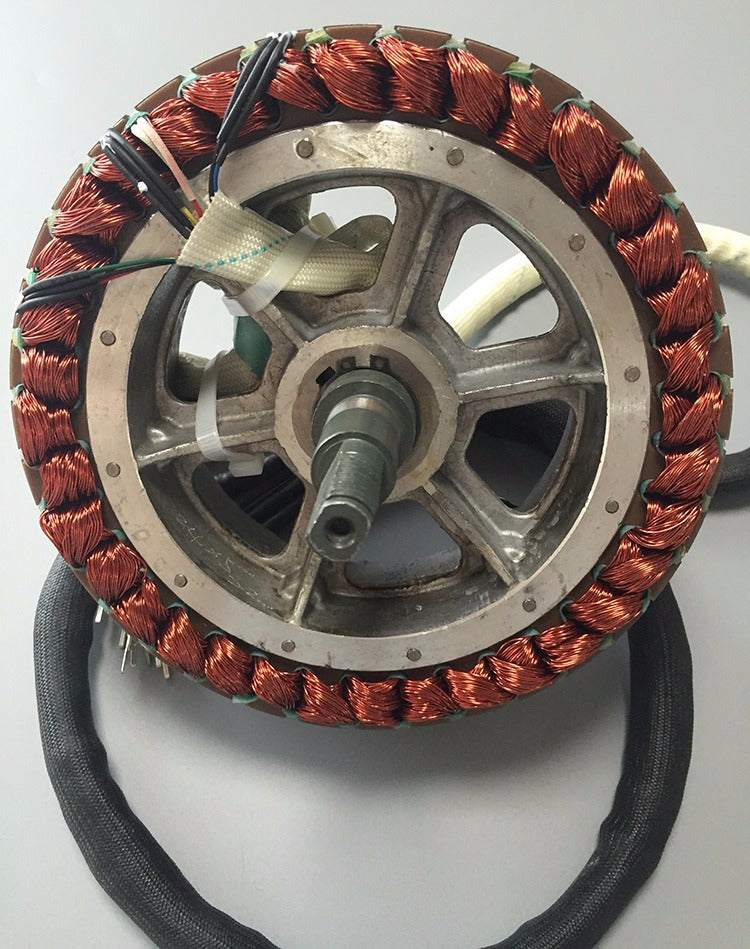

Aluminum core
Hardened Steel axle
36 X Spoke Hole OD 4.2mm
Two Halls(One for spare, in case of damage) , 10mm² Phase wire
Thermic Probe: KTY 83
Support regenerative braking & Reverse function
Waterproof grade: IP54
Efficiency: ≥87%
10mm Axle flats
Net Weight: 12.75kg, Gross Weight 14.5kg
Package: 34cmX34cmX33cm
We have all 4 options available for winding: 3t, 4t, 5t, 6t
