MANITOU Dorado Expert 29" Air
Technical specifications:
intended use : Downhill, Enduro
E-bike ready: yes
Wheel size: 29 "| 27.5"
Material fork crown / shaft: Forged aluminum / aluminum
Space between the double bridge 29 ": 104 mm - 138 mm
Material standpipes: 7057 aluminum, black anodized
Standpipe diameter: 37 mm
Material dip tubes: aluminum
axle type : 20 x 110 mm BOOST thru-axle
Steerer: 1 1/8 "
Steerer tube length: approx. 260 mm
Suspension travel: 203 mm (190/180 mm adjustable)
Spring system: Dorado Air
Adaptation of the spring characteristic: yes, with IRT system (air spring)
Damping: TPC + damper
Lockout: without
Axle to Crown: 602 mm (29 "with 203 mm travel)
Brake mount: Postmount, 203 mm
Max.permissible brake disc size: 223 mm
Tire diameter max. 27.5 ": 717mm
Tire diameter max. 29 ": 756 mm
Tire width max .: 72 mm
Offset: 57 mm
Color: black matt
Weight according to the manufacturer: 3120g
Weight weighed: 3129g without thru axle (27.5 ")

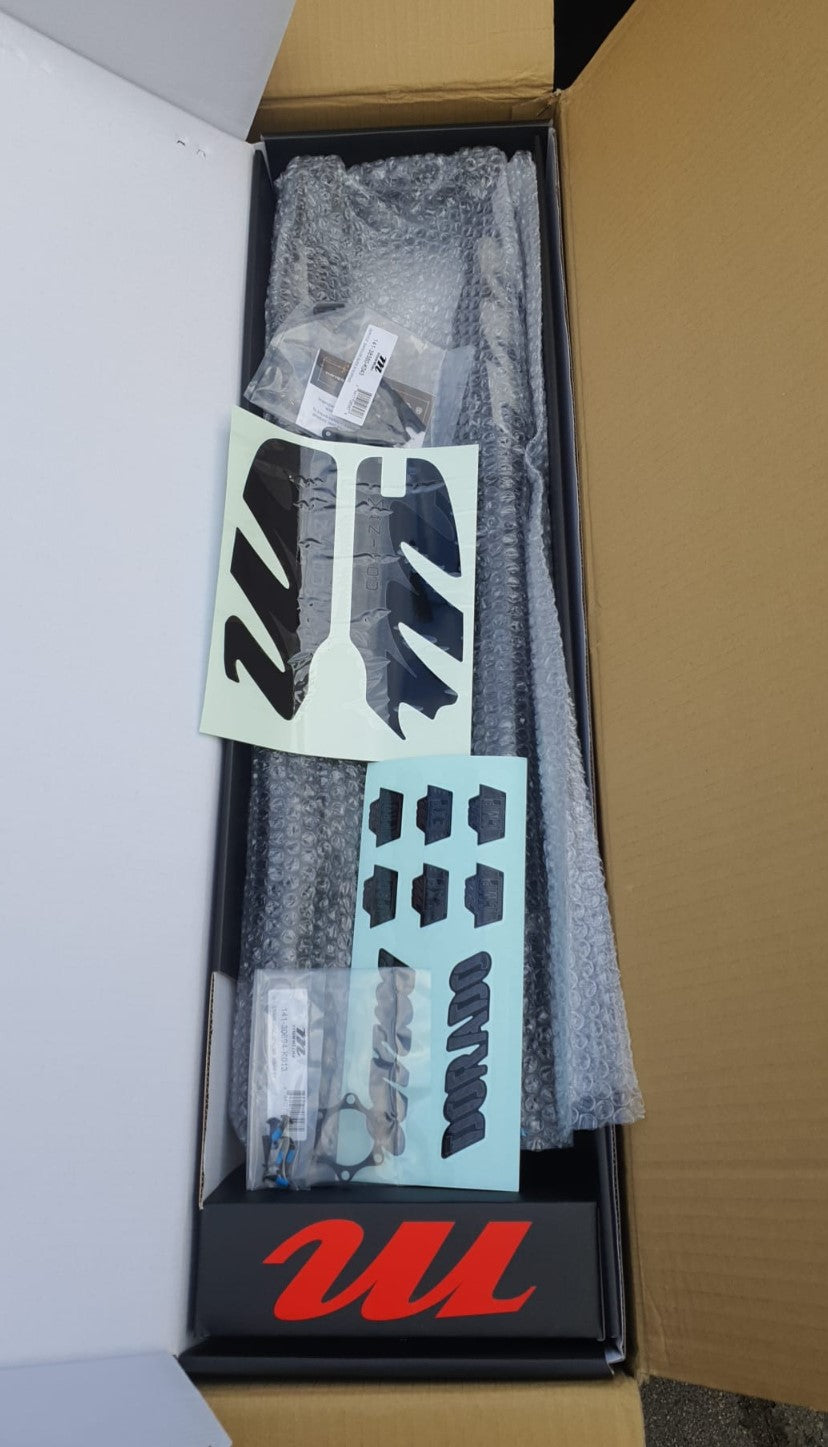

Scope of delivery:
1x MANITOU suspension fork 29 "| 27.5" Dorado Expert 203 mm | 20x110 mm BOOST 57 mm offset | black
1x thru axle
MANITOU suspension fork 29 "| 27.5" Dorado Expert 203 mm | 20x110 mm BOOST 57 mm offset | black
Get Inverted - Back and better than ever, the new Dorado Expert is ready to face the toughest conditions mountain biking can offer you. Regardless of whether you are chasing seconds on the trail, want to do a lap in the local bike park or want to collect maximum airtime on the jump lines in the hills of Utah - the Dorado Expert has everything you need! With a completely new 37 mm chassis, completely redesigned inner workings and a precision on the trail that only upside-down forks can offer, the new Dorado is your ticket to the best ride you have ever had!
NEW 37 MM CHASSIS
An enormous increase in rigidity compared to the 36 mm chassis of the previous version

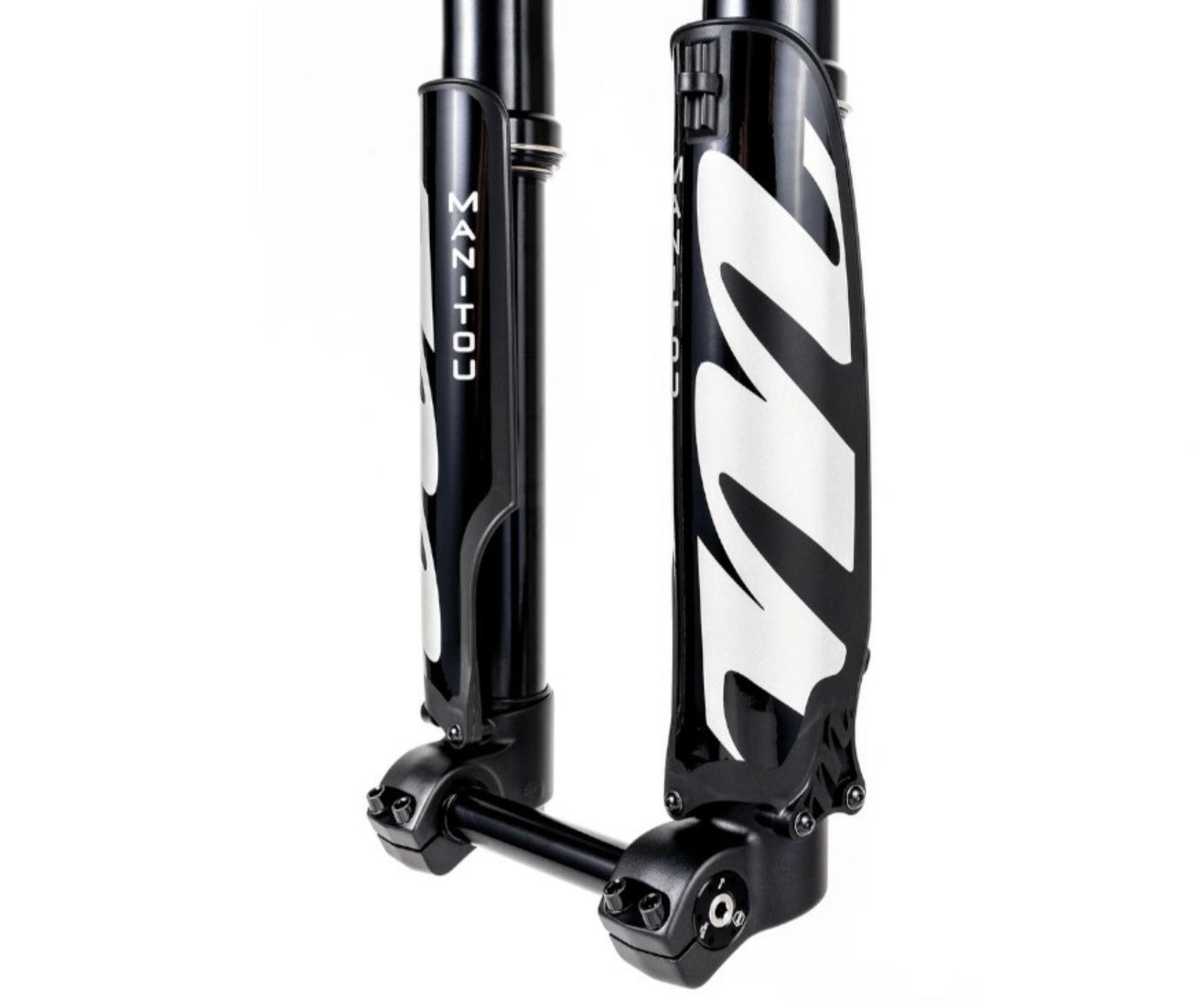

UPSIDE DOWN DESIGN
Provides an incredibly sensitive response and a smooth ride. The constant lubrication of the bushings and seals improves the function and reduces wear.
DORADO AIR
Manitou's unique equalization valve inside the fork ensures the perfectly balanced pressure ratio between the positive and negative air chambers. This means that the optimal performance of your fork is always available to you. The spring travel can also be internally adjusted from 180 mm to 190 mm and 203 mm.
IVA (incremental volume setting)
Adjusts the volume in the positive air chamber with self-supporting spacers.
TPC + DAMPER
A large oil volume and optimized flow paths dampen small and large impacts evenly and reliably. The TPC + has two internal compression pistons, a hydraulic bottom-out piston and a spring-loaded IFP piston. Both the high-speed pressure level and the high and low-speed pressure level can be set independently of each other.

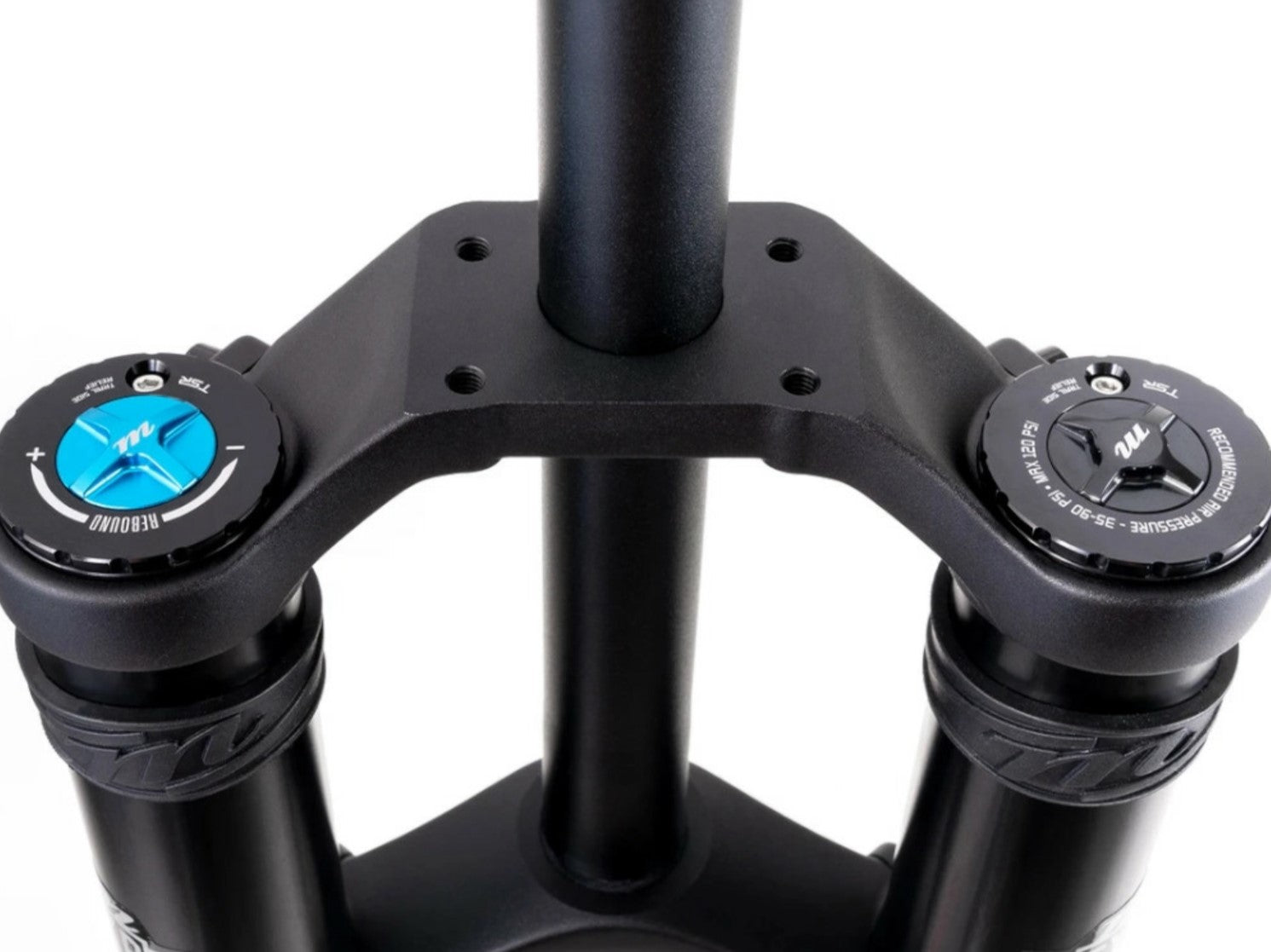

ONE FOR ALL
The fork is suitable for 27.5 "and 29" wheels. Markings on the fork legs help you to find the right clamping point for the fork crown. The offset can be adjusted with different fork bridges. 47 mm offset is optimized for 27.5 "wheels, 57 mm offset for 29". When using the flat crown with 29 "wheels, the maximum usable head tube length including headset is reduced to 121 mm.
TSR BLEED SCREWS
Thanks to the TSR screws, you can release excess pressure from your fork legs. So you have a consistent performance from sunrise to sunset.
Link to official manufacturer fork website: https://hayesbicycle.com/products/new-my22-dorado-expert
