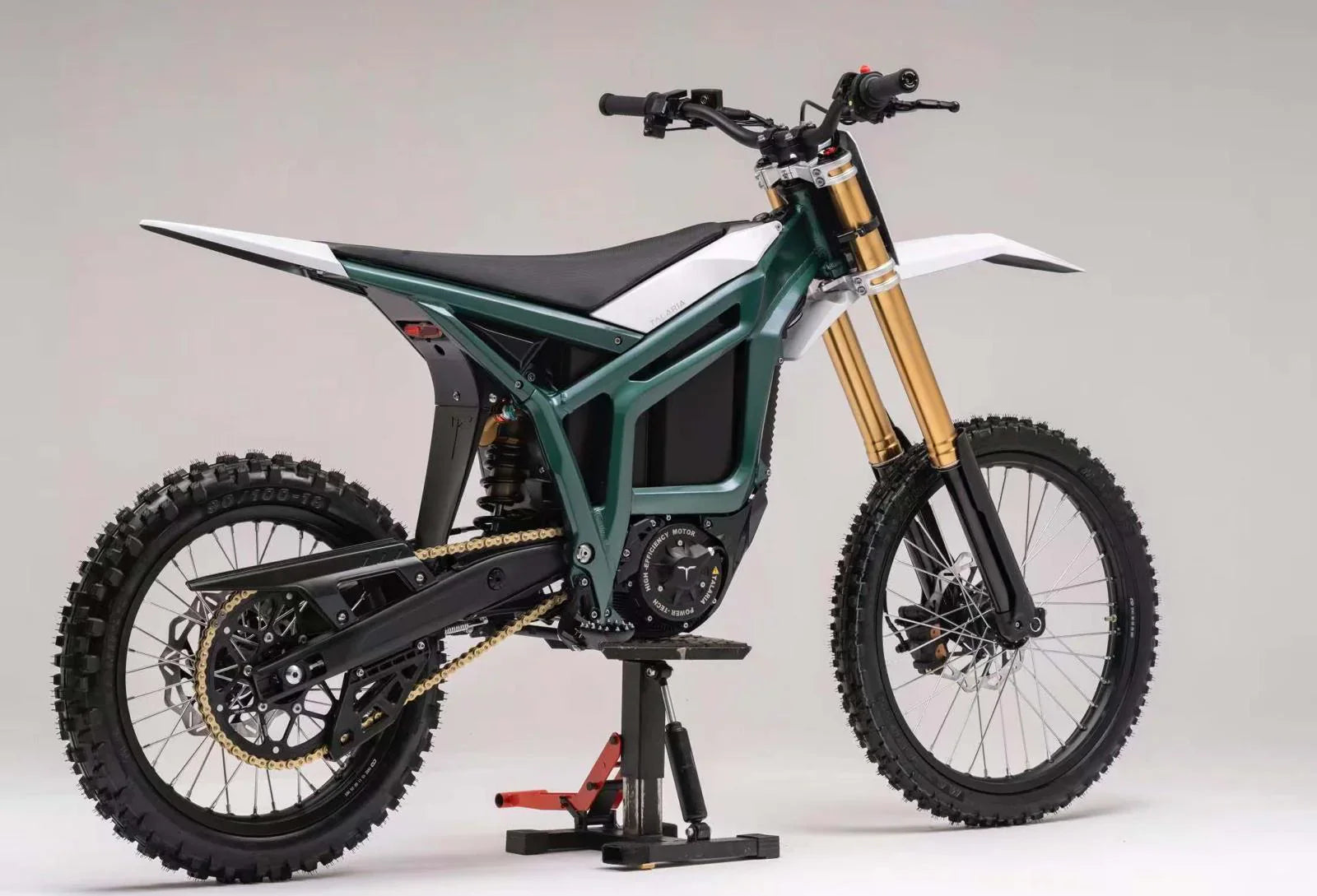

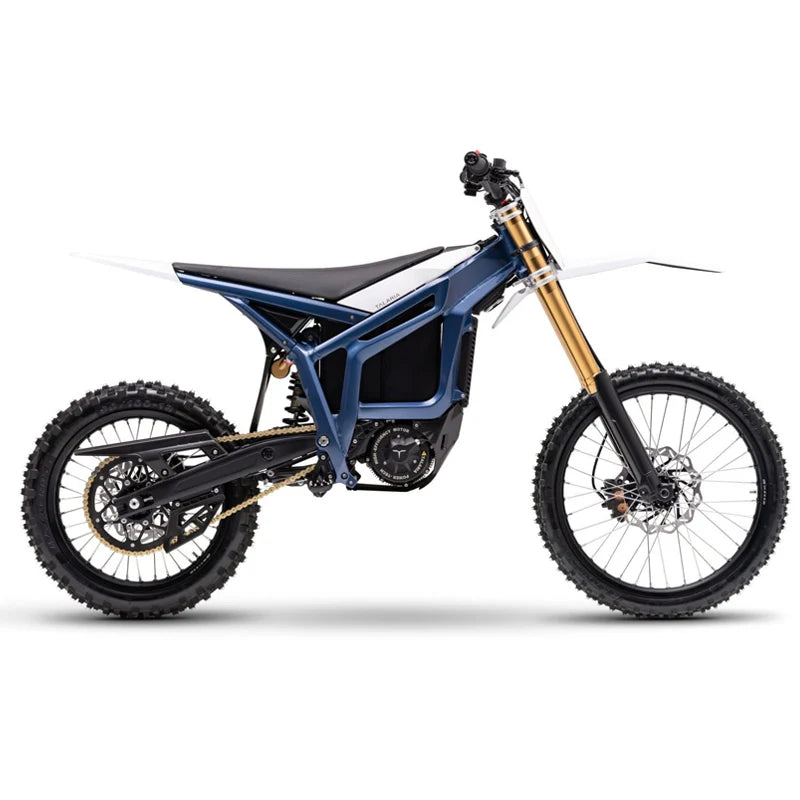

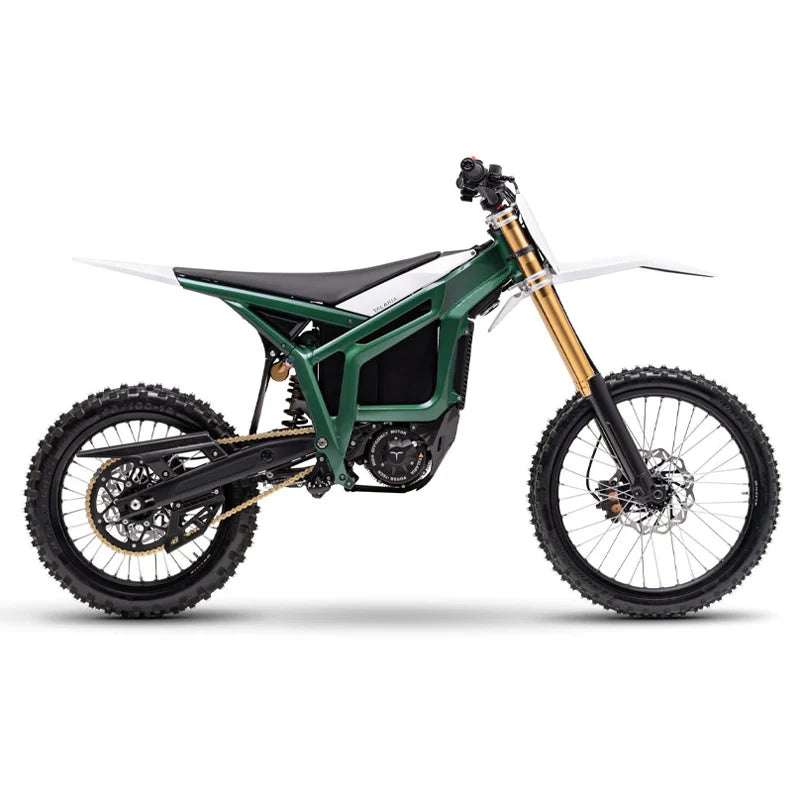

Talaria Komodo

KEY FEATURES

• 32kW Peak Power – Explosive performance for serious riders
• 96V 45Ah Greenway Lithium Battery – High-capacity power for extended range
• 21″ Front / 18″ Rear Wheels – Off-road ready with pro-level sizing
• Komodo Controller – Precision-tuned for maximum throttle response
• E/S/H/R Ride Modes – Eco, Street, Hyper, and Reverse at your fingertips
• Regen Button – Regenerative braking for efficiency and control
• Front Dual Chamber Air Forks – 850mm length, 250mm travel for superior suspension
• Rear Air Shock – 350mm length, 90mm travel for smooth rear-end control
• Forged Alloy Chassis – Lightweight, tough, and ready for impact
• 520 Chain Guide Protection – Rugged drive protection for off-road abuse

VEHICLE

• Dimensions: 2,200 x 810 x 1,220 mm (86 x 32 x 48 in)
• Wheelbase: 1380 mm (52.3 in)
• Seat Height: 910 mm (35.8 in)
• Min. Ground Clearance: 315 mm (12.40 in)
• Net Weight: 98 kg (216 lbs)
• Max Load: 160 kg (353 lbs)
• Braking: Hydraulic Disc
• Braking Efficiency: 3.64 / 3.09 (m/s²)
• Rim Size: 1.6×21 / 2.15×18
• Tire Size (CST): 70/100-21 – 90/100-18
• Tire Size (Maxxis): 80/100-21 – 110/90-18
• Fork: Dual Chamber, 850 mm, 43 mm tube / 250 mm travel
• Rear Shock: 350 mm travel, 90 mm stroke, 500–720 lbs spring
• Min. Turning Radius: 2.1 m
• Steering Angle: >45°
• Forward Tilt Angle: 26°

POWER

• Nominal Voltage: DC 97.2V
• Max Speed: 105 km/h
• Peak Torque: 754 Nm
• Peak Power: 32 kW
• Range (at 45 km/h): 115 km (71.5 miles)
• Power Modes: Eco / Sport / Hyper / Reverse

ELECTRONICS

• Battery Pack: 97.2V 45AH
• Battery Cells: Samsung 50S 21700 / LG H51
• Battery Weight: 24.5 kg (58 lbs)
• Protection Level: IP67
• Regenerative Braking: 4-level adjustment
• Display: TFT 320 DPI, 167° viewing angle

MOTOR

• Type: DC Permanent Magnet Synchronous
• Mounting Position: Mid-mounted
• Cooling: Air-cooled
• Rated Torque: >14 Nm
• Peak Torque: >90 Nm
• Rated Power: 8.6 k
